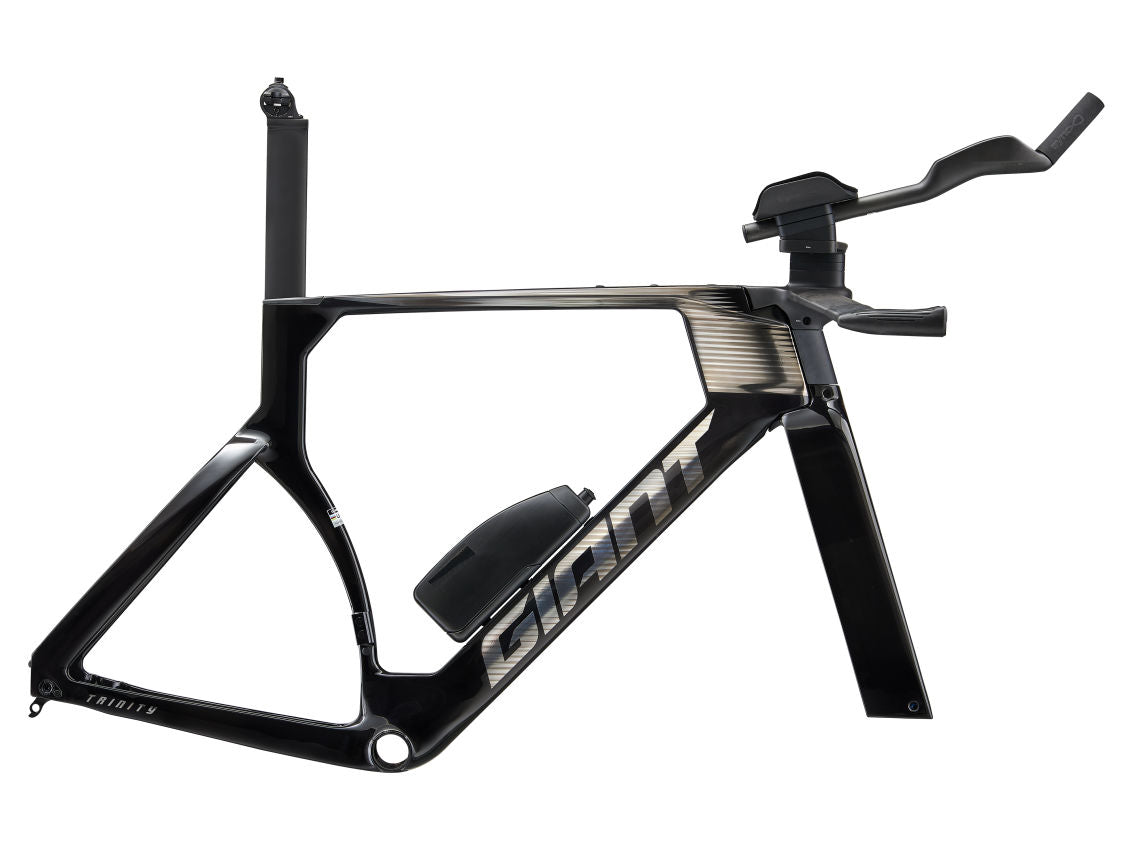

Giant 2026 Trinity Advanced SL Time Trial Frame & Fork

Product Overview

Lighter. Faster. More Control. Engineered to squeeze out every millisecond.

Every time trial is a battle against the clock. From windswept flats to technical descents, the course dictates everything—and the only constant is the ticking timer that determines a result. The 2026 Trinity Advanced SL TT is engineered to unlock new possibilities in that battle, combining straight-ahead aero efficiency with dynamic speed and an incredibly wide range of adjustments and adaptability.

Built on the exact same Advanced SL-grade composite frameset as the triathlon version, the TT frameset is made for time trials—developed, tested, and raced on prototype models by riders from the Jayco AlUla WorldTour squad. With a frameset that's 558g lighter and 5.9 watts faster than the previous generation Trinity Advanced Pro, plus all-new integrated solutions to help squeeze out more speed, it's the ultimate advantage in any race against the clock.

The differences between the TT and Tri versions come down to setup. The TT frameset includes an integrated down tube water bottle and cage designed specifically for aero optimization with the frameset, whereas the Tri version uses an integrated hydration reservoir and bento box.

---

Key Performance Factors

⚡ Full-Speed Dynamics – Built for Flat-Out Speed

• All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock

• 558g less weight for faster climbing compared to the previous generation

• Integrated disc brakes for confident cornering and descending

• Added compliance in the armrests and seatpost to help absorb bumps and vibrations for smoother ride performance

💨 Ultimate Aero Efficiency – Proven in the Wind Tunnel

• AeroSystem Shaping Technology with truncated ellipse tubing delivers a 5.9-watt aero advantage and greater stiffness-to-weight ratio over the previous generation Trinity

• Developed through Computational Fluid Dynamics (CFD) analysis combined with dynamic wind-tunnel testing

• Every tube shape and junction is meticulously shaped to minimize drag and control airflow across all relevant yaw angles

🎯 Personalized Fit – 24x More Adjustment Options

• Four seatpost offset positions (compared to two on the previous generation) offering a total range of 51mm (compared to 40mm previously) to help riders achieve an efficient, comfortable pedaling position

• 24x more armrest positioning options (stack, reach, angle and width) — easier than ever to dial in fit for all body types and any riding position using a simple two-bolt mechanism

---

Key Features

🏆 Advanced SL Composite – Professional-Grade Raw Carbon

• Professional-grade raw carbon combined with the most advanced engineering and construction methods

• Overall weight savings of 558g compared to the previous-generation Trinity Advanced Pro frameset

• Without compromising stiffness and power transmission

• Painted frame weight: 1,340g · Painted fork weight: 535g

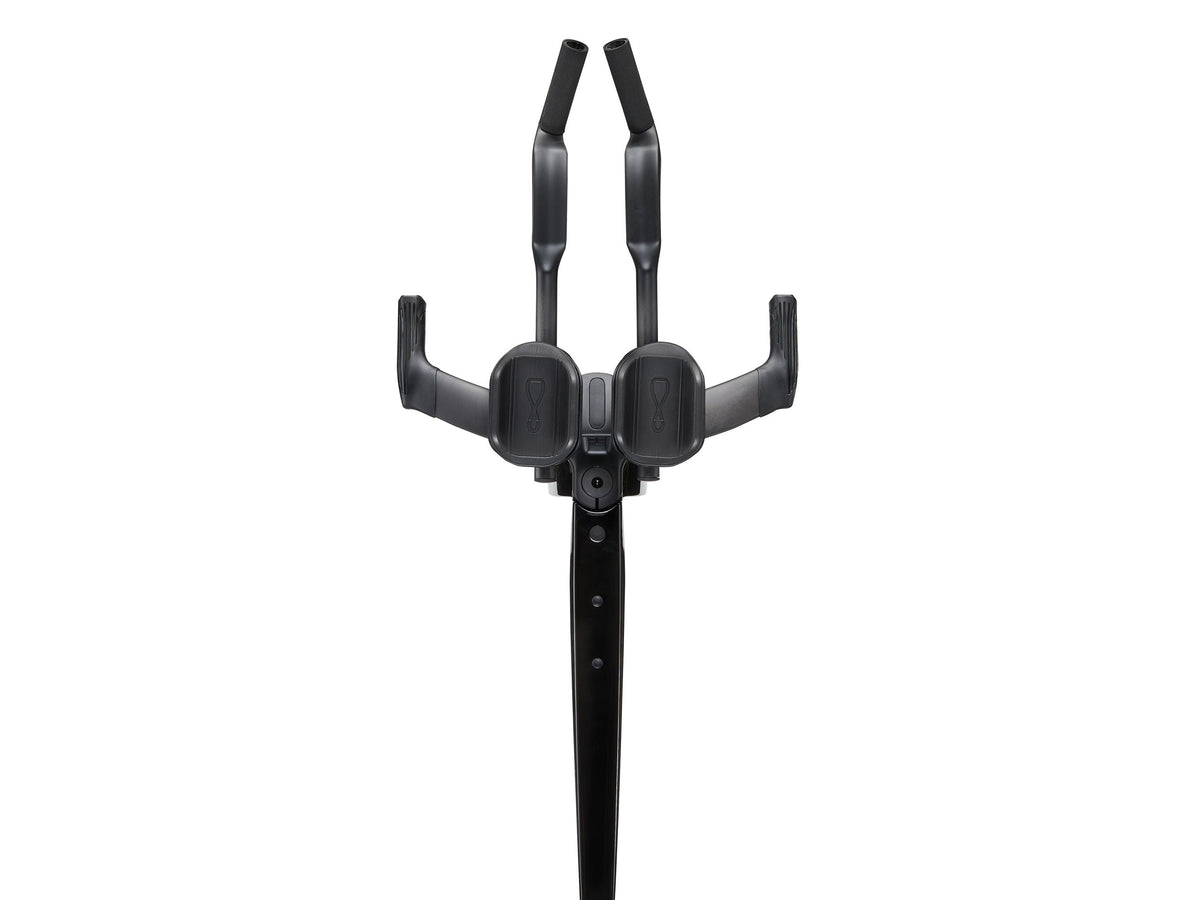

🚴 AeroDrive Composite Base Bar – Proprietary 5:1 Airfoil

• Proprietary, time trial-specific 5:1 airfoil base bar

• Delivers the ultimate in aerodynamic performance

• Wider range of adjustment compared to the previous generation

• Includes Sync armrest set and 10° and 15° extension wedges

🪑 Adjustable Armrests – 24x More Positioning Options

• New armrest design offers a wider range of adjustments

• 24x more positioning options (stack, reach, angle and width)

• Easier than ever to dial in fit for all body types and any riding position using a simple two-bolt mechanism

📐 4-Position Seatpost Offset – Efficient Pedaling Position

• New seatpost design features four offset positions (compared to two on previous generation)

• Wider total range of 51mm (compared to 40mm on previous design)

• Helps riders achieve an efficient, comfortable pedaling position

💪 PowerCore – Oversized Bottom Bracket Area

• Massively oversized bottom bracket area features a fully integrated 86mm wide design

• Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside

🍶 TT-Specific Integrated Hydration – Aero-Optimized Fueling

• Integrated down tube water bottle and cage designed specifically for aero optimization with the frameset

• Unlike the Tri version, the TT frameset forgoes the integrated hydration reservoir and bento box in favour of a dedicated TT setup

🔧 Internal Cable Routing – Clean and Aero

• Derailleur and brake housing hidden from the wind for maximum aerodynamic advantage and improved aesthetics

🛑 Disc-Brake Integration – Confident Stopping Power

• Frame and fork engineered specifically for disc brakes using aero shaping to help minimize drag

• Confident braking performance in all weather and road conditions

---

Specifications

---

Geometry & Sizing

Sizing to be used as a reference only. Please check with a local authorized Giant dealer to determine the correct size.

---

What's in the Box

• Giant Trinity Advanced SL TT Frame × 1 (Advanced SL-Grade Composite, 12x142mm thru-axle)

• Advanced SL-Grade Composite Fork × 1 (Full-Composite Steerer, 12x100mm thru-axle)

• AeroDrive Base Bar with Sync Armrest Set (10° and 15° extension wedges)

• AeroDrive Integrated Stem

• Trinity Composite Seatpost (4-position offset)

• Integrated down tube water bottle and cage (TT-specific)

• Computer mount

• Headset bearings and spacers

• Thru-axles (front and rear)

• Frameset only – groupset, wheels, saddle, and other components not included

---

What Riders Are Saying

"今まで乗っていたC社の現行TTモデルに比べ、巡航スピードに乗せるまでの立ち上がりの良さ、高速域からの踏み直しでのかかりの良さ、MAXスピード、登り返し時の失速感の少なさなどがあり、戦闘力大幅UP！" — Giant Store Japan
(Translation: "Compared to the current TT model from C-brand I was riding, the ease of getting up to cruising speed, the responsiveness when re-accelerating from high speed, the MAX speed, and the lack of speed loss on climbs—combat effectiveness greatly increased!")

"Leichter, aerodynamischer Triathlonrenner, 5,9 Watt schneller, vielseitig einstellbar. Bei uns im großen Test." — Rennrad-News
(Translation: "Lighter, more aerodynamic triathlon racer, 5.9 watts faster, versatile adjustability. In our big test.")

"Das Warten hat sich gelohnt" – niedriges Gewicht, hohe Steifigkeit, wieselflinkes Handling. — Rennrad-News
(Translation: "The wait was worth it" – low weight, high stiffness, agile handling.)

"The TT frameset has been developed, tested and raced (on prototype models) by riders from the Jayco AlUla WorldTour squad." — Giant Sydney

---

Why Choose the 2026 Trinity Advanced SL TT?

---

Technical Notes

⚠️ Frameset Only: This listing is for the frame, fork, base bar, armrest set, stem, and seatpost — complete bike components (groupset, wheels, saddle, etc.) are not included

⚠️ TT vs Tri Setup: The TT frameset is made for time trials and includes an integrated down tube water bottle and cage designed specifically for aero optimization. The Tri frameset is designed primarily for triathlons and features an integrated hydration reservoir and bento box. Both are built on the same frameset

⚠️ Tyre Clearance: Fits tyres up to 30mm

⚠️ Bottom Bracket: Press Fit 86mm — compatible with SRAM DUB and other press-fit standards

⚠️ Electronic Groupsets Only: The Trinity Advanced SL frameset is designed for electronic groupsets only — compatible with SRAM AXS and Shimano Di2

⚠️ UDH: The Trinity Advanced SL does not use SRAM's Universal Derailleur Hanger (UDH)

⚠️ Warranty: Giant's lifetime frame warranty applies to the original purchaser

---

About Giant

Giant is the world's largest bicycle manufacturer, founded in 1972 in Taiwan. With over 50 years of engineering heritage, Giant designs and builds bicycles for every discipline—from WorldTour racing to everyday commuting. The Trinity Advanced SL represents the pinnacle of Giant's aerodynamic time trial and triathlon engineering. The TT version has been developed, tested and raced (on prototype models) by riders from the Jayco AlUla WorldTour squad—including Luke Plapp, who rode it to victory at the Australian National Time Trial Championships. Every Trinity Advanced SL frameset is manufactured in Giant's own composite factory, ensuring complete control over quality, precision, and performance.
