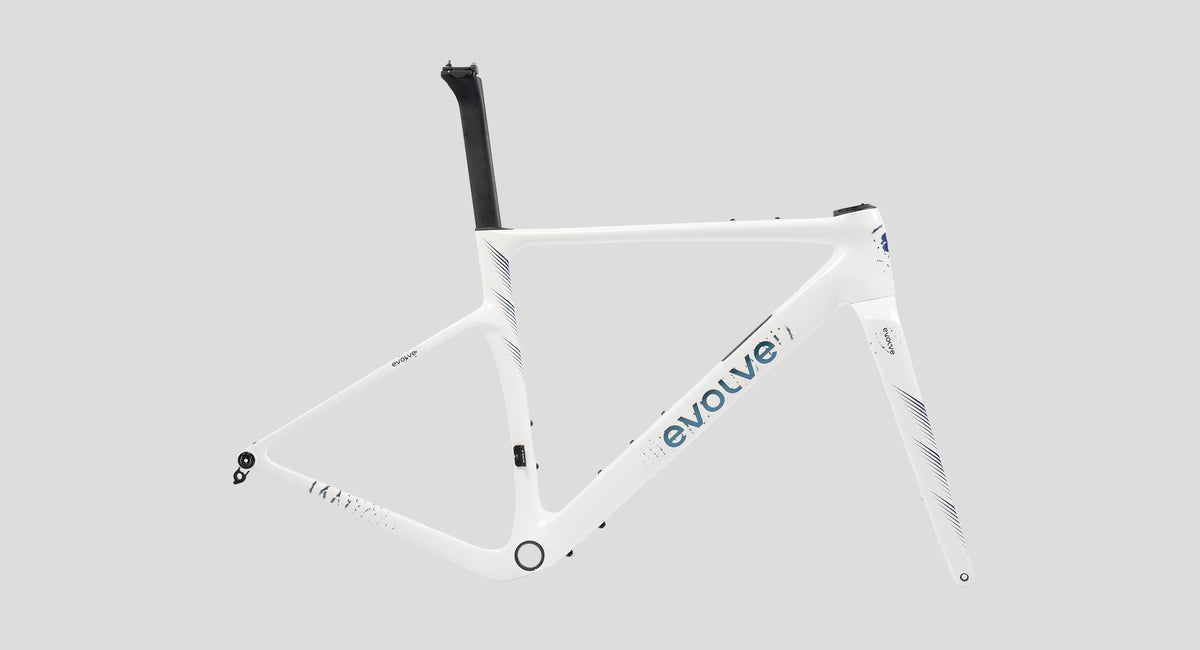

Evolve CIMA GR Frameset

Product Overview

Ultralight. Aero gravel. Race‑ready. The evolution of speed on dirt.

The Evolve CIMA GR is the first aerodynamic gravel frameset from evolve®—the brand behind the legendary 650g CIMA road frame. Named in tribute to the legendary Cima Coppi, the highest point of the Giro d'Italia, the CIMA GR transfers the same obsessive pursuit of lightweight performance from tarmac to gravel.

Derived directly from the award‑winning CIMA road platform, the CIMA GR weighs just 750g for an unpainted size M frame—an extraordinary figure for a gravel platform designed to tackle rough trails, long‑distance competitions, and the most demanding races. Tested at the Silverstone Sports Engineering Hub wind tunnel, the CIMA GR saves up to 17.28W at 35km/h compared to other gravel frames in its class. Already proven in European competition, the CIMA GR has helped the MG.K Vis Continental team secure victories—including the climbers' classification at the Ethias Tour de Wallonie.

---

Key Features

🏆 Ultralight Gravel Construction

• 750g (size M, unpainted frame)

• 375g full carbon fork (unpainted)

• Remarkably lightweight for a gravel platform designed for durability and impact resistance

⚡ Premium Carbon Layup

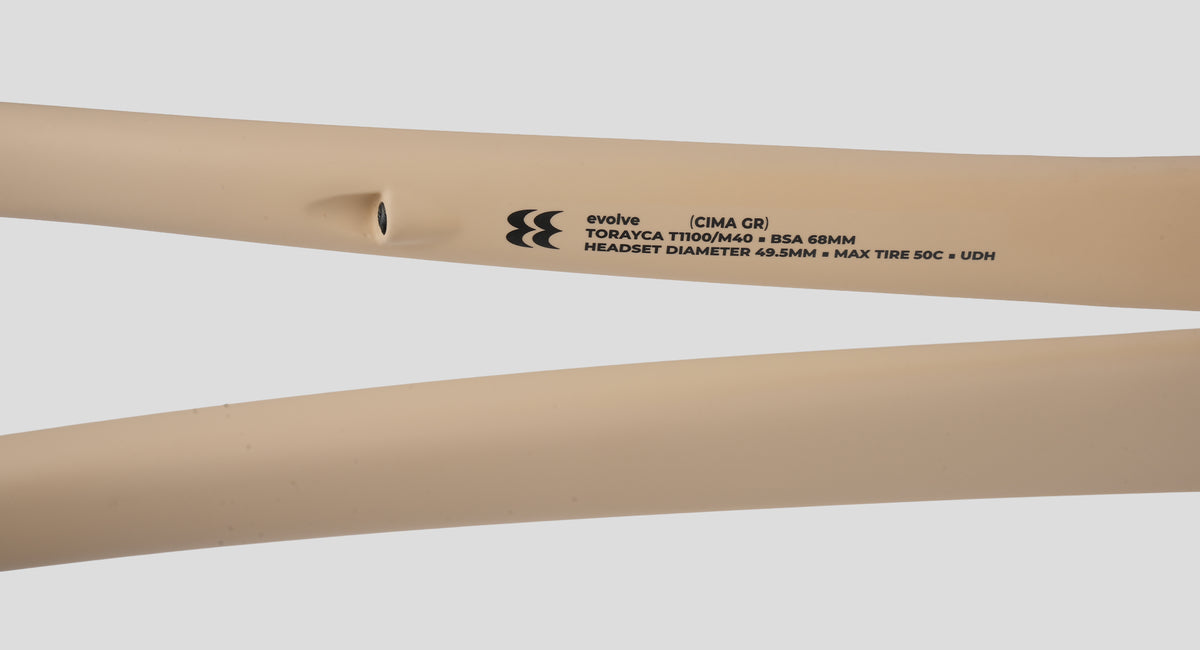

• Constructed from TORAYCA® T1100, T800, and M40 high‑modulus carbon fibre

• Optimised material distribution: high‑modulus carbon in high‑stress areas, reduced density in non‑critical zones

• Ideal balance of weight, strength, and durability

📐 Optimised Stiffness – Where It Matters Most

• +7.5% bottom bracket stiffness – immediate power transfer and explosive acceleration

• +1.2% head tube stiffness – sharper, more precise handling

• Engineered for race‑winning responsiveness

🏁 Relentless Pursuit of Speed

• Tested at the Silverstone Sports Engineering Hub wind tunnel

• Saves a weighted average of 17.28W at 35km/h compared to typical gravel frames

• Designed for race speeds—where every watt matters

🛞 Generous Tyre Clearance

• Fits tyres up to 700×50C / 29er×2.0″

• Compatible with both 700C and 650B wheel sizes

• Choose smooth‑rolling tyres for fast courses or larger tyres for increased comfort and control on rough terrain

🛠️ Mechanic‑Friendly Engineering

• BSA threaded bottom bracket (68mm) – no creaking, easy maintenance

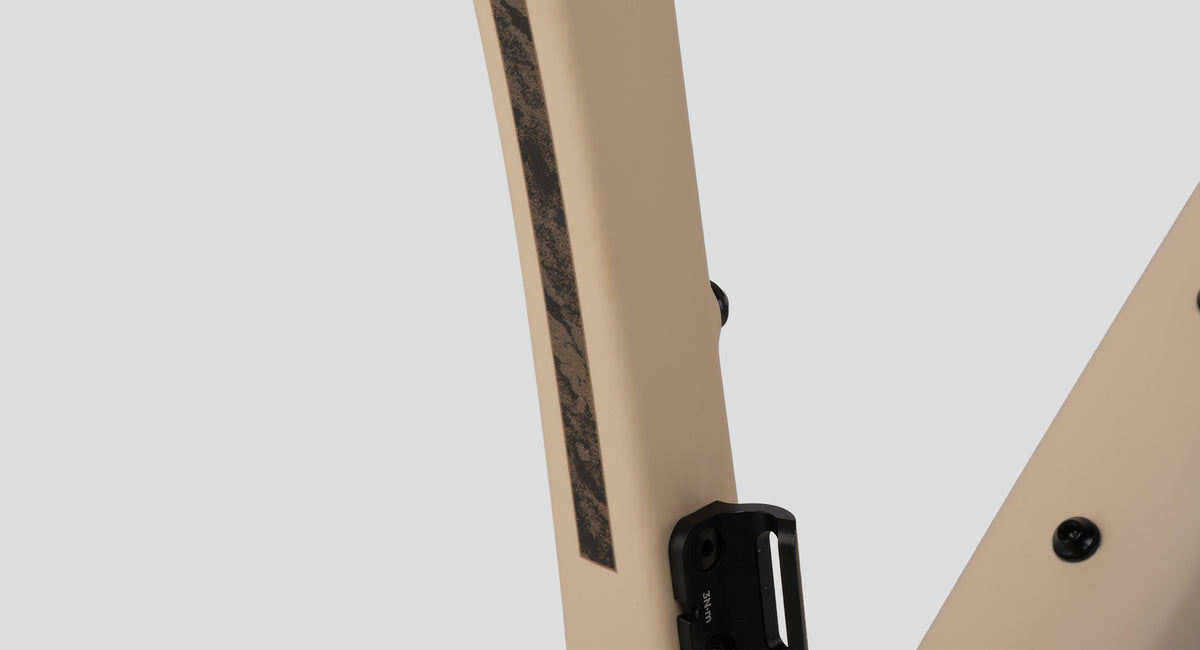

• SRAM UDH derailleur hanger – future‑proof compatibility and precise shifting

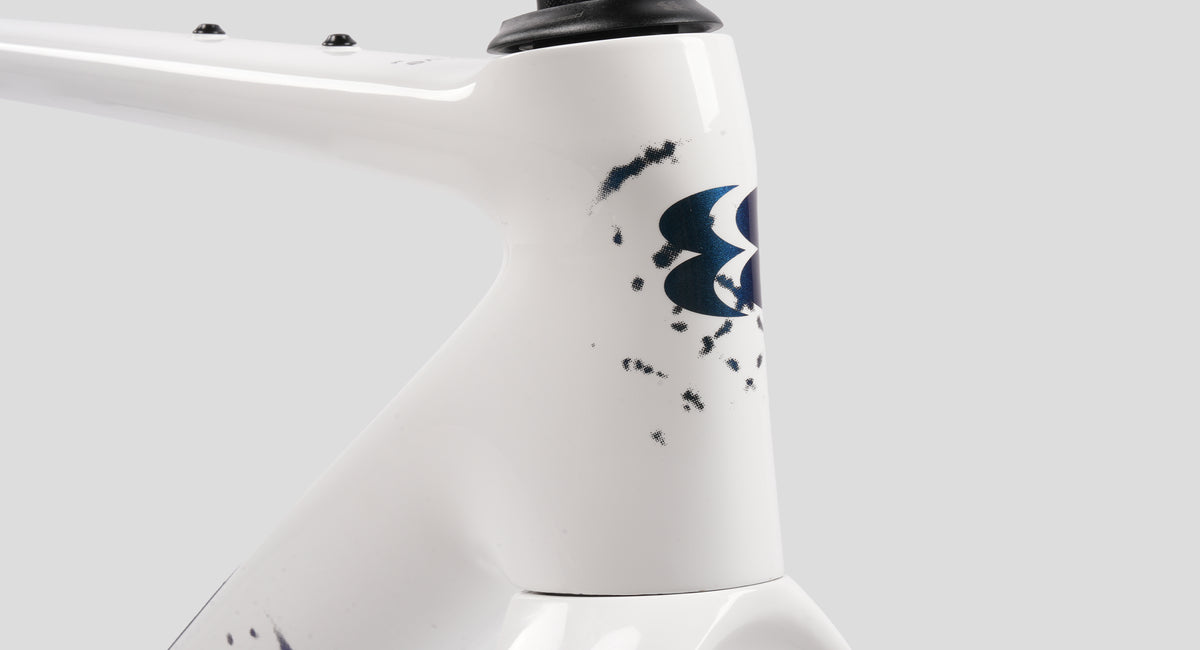

• Standard steel headset bearings – easy service and long‑term reliability (40.5mm ID × 49.5mm OD × 6.5mm)

• Clean internal cable routing

• Limited Lifetime Warranty

🏁 Race‑Ready

• UCI Approved – ready for WorldTour racing

• CE Certified – meets European safety standards

• Max rider weight: 109kg

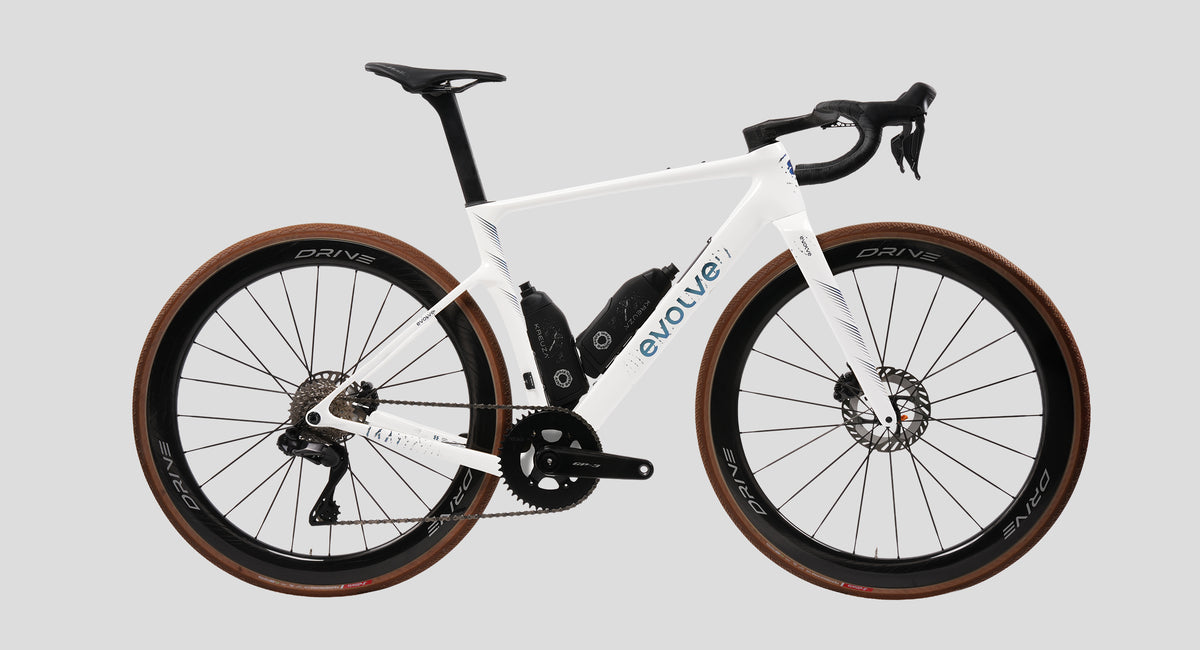

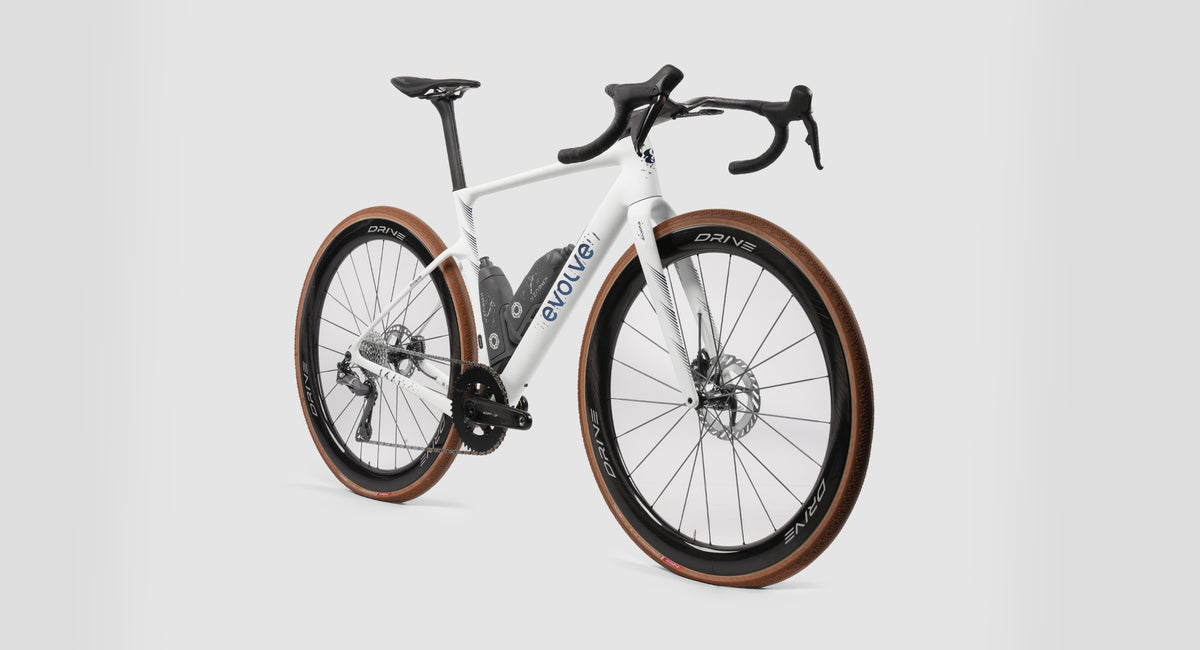

🎨 Sailfish Pearl – Inspired by Nature's Fastest Swimmer

• Inspired by the sailfish, the fastest creature in the ocean—every line, structure, and pattern reflects its ability to cut through water with precision and speed

• Fin‑inspired graphics on the fork and seat tube evoke dynamic motion, as if slicing through waves with every pedal stroke

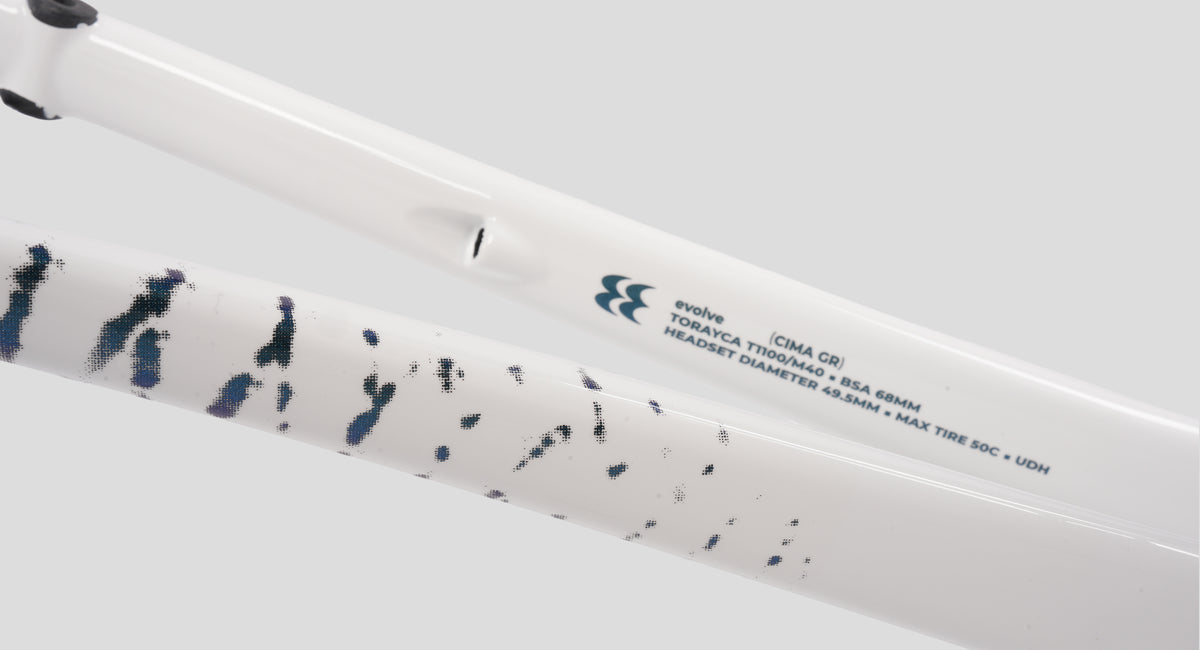

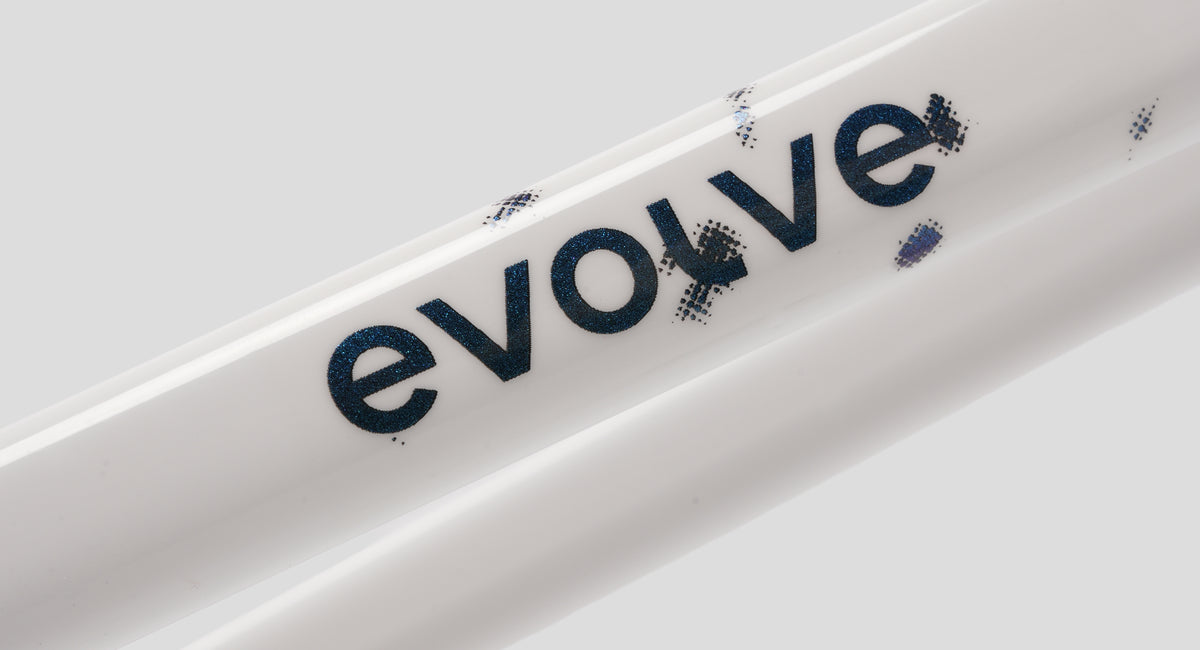

• Iridescent decals shift with light and angle, inspired by the sailfish's skin—creating a subtle yet captivating visual depth

• A tribute to the wisdom of the ocean

---

Specifications

---

Pre‑Order Offer – Save $100

Pre‑Order Period: July 22 – August 21, 2026

Coupon Activation Dates:

• XS, S, M, ML: August 22, 2026

• L, XL: September 25, 2026

Key Terms:

• Each USD 100 deposit provides one USD 200 coupon for one CIMA GR frameset

• Coupon valid for three months from activation date

• Multiple deposits can be purchased; each issues a separate coupon

• Multiple coupons cannot be combined on one frameset

• Deposit refundable until coupon is used

• Production lead time: 20–30 days from final payment, followed by shipping

---

KREUZA GR Integrated Handlebar – Included

The CIMA GR frameset includes the KREUZA GR Handlebar—an integrated carbon gravel cockpit designed to complement the frame's aerodynamic and lightweight philosophy.

Available Configurations:

• Lengths: 310mm or 380mm

• Offsets: -5mm, 10mm, or 25mm

---

Geometry – Designed for Performance

Full geometry chart available on request—accommodates a wide range of rider heights.

---

Why Choose Evolve CIMA GR?

---

What's in the Box

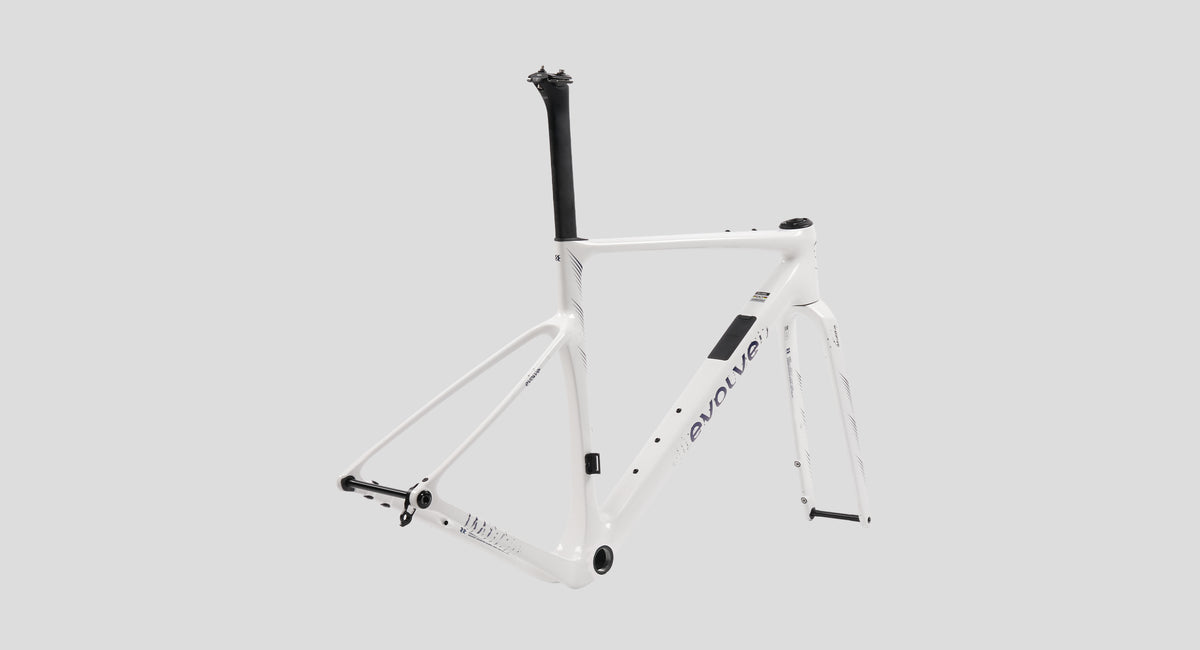

• Evolve CIMA GR Frame × 1 (Sailfish Pearl colourway)

• Matching full carbon fork × 1 (375g)

• KREUZA GR Integrated Handlebar × 1 (310mm or 380mm, offset of your choice)

• Carbon seatpost (310mm or 380mm, offset of your choice)

• Standard steel headset bearings

• All essential frame hardware and components required for assembly

---

Technical Notes

⚠️ Groupset Compatibility: 1× mechanical & electronic compatible; 2× electronic drivetrain only

⚠️ BB Standard: BSA 68mm threaded—use standard BSA bottom bracket

⚠️ Derailleur Hanger: SRAM UDH—universal compatibility

⚠️ Tyre Clearance: Fits tyres up to 700×50C / 29er×2.0″—choose according to terrain

⚠️ Brake Type: Flat mount disc only—160/180mm front, 140/160mm rear

⚠️ Max Chainring: 1×: 50T / 2×: 48/31T (GRX), 50/34T (Shimano 12S), 48/35T (SRAM Road)

⚠️ Max Rider Weight: 109kg

⚠️ Warranty: Limited Lifetime Warranty against manufacturing defects

⚠️ Pre‑Order: Deposit refundable until coupon is used; coupon valid for 3 months from activation

---

About Evolve

Evolve® (極也) is a Xiamen‑based Chinese cycling brand founded in May 2025 by industry veterans Tony Tong (founder of Elitewheels) and Mian Chan (founder of Cybrei), bringing together decades of experience in carbon fibre engineering and component design.

Evolve's mission is to deliver a world‑class ride experience through meticulous design, premium materials, and no‑compromise testing—all while making advanced racing technology more accessible. From in‑house design and production to validation at world‑class facilities like Silverstone and Zedler, every CIMA GR frameset is engineered to challenge the established order. In 2026, evolve sponsors two UCI Continental teams and one UCI Pro Team—a testament to the brand's rapid rise in the professional peloton.

---

The evolution of gravel speed awaits. Secure your CIMA GR today!
