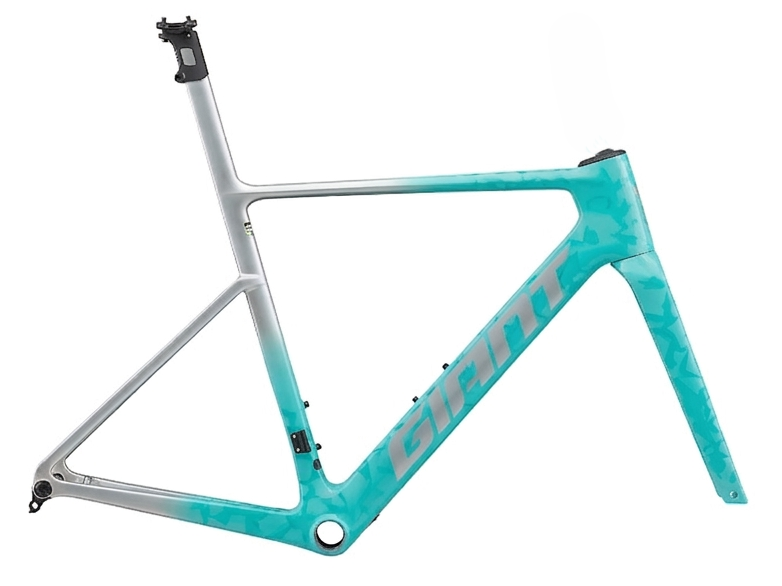

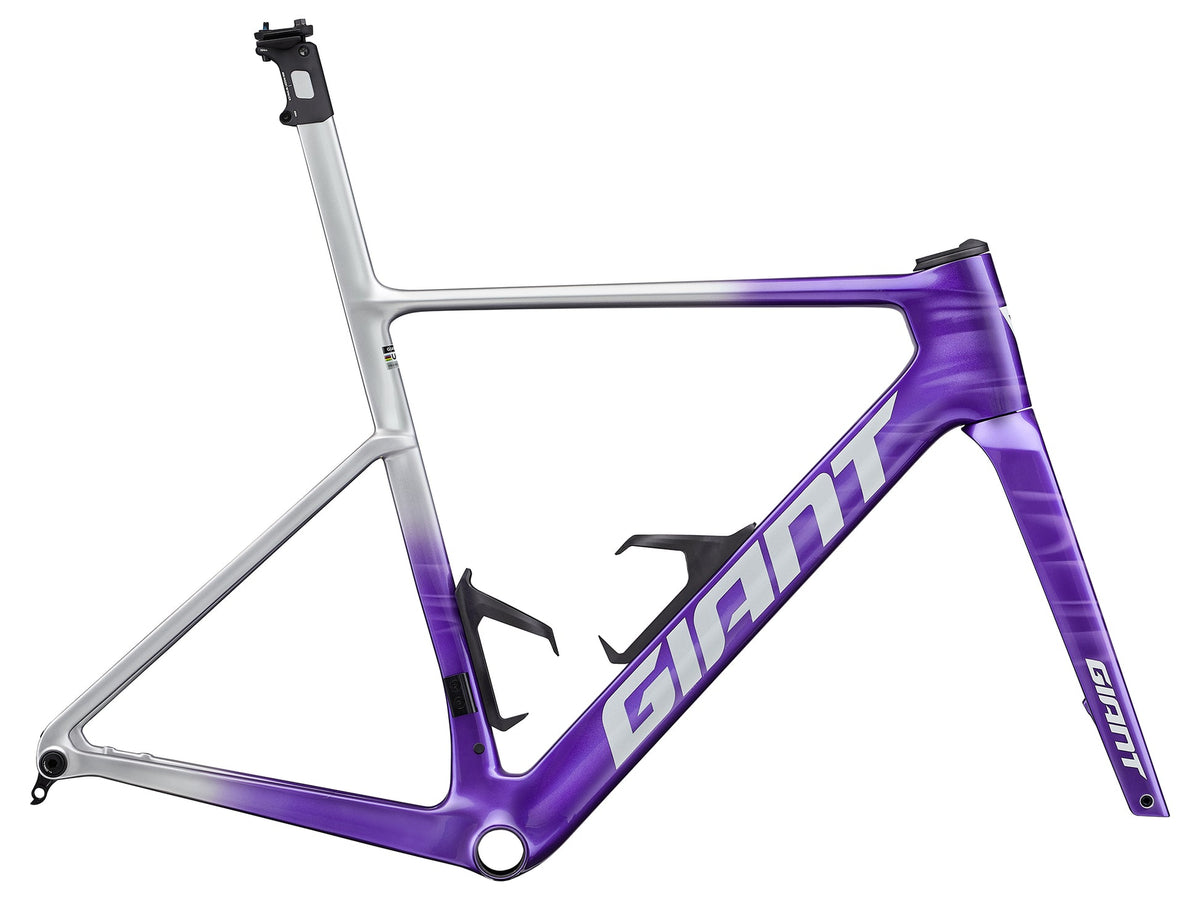

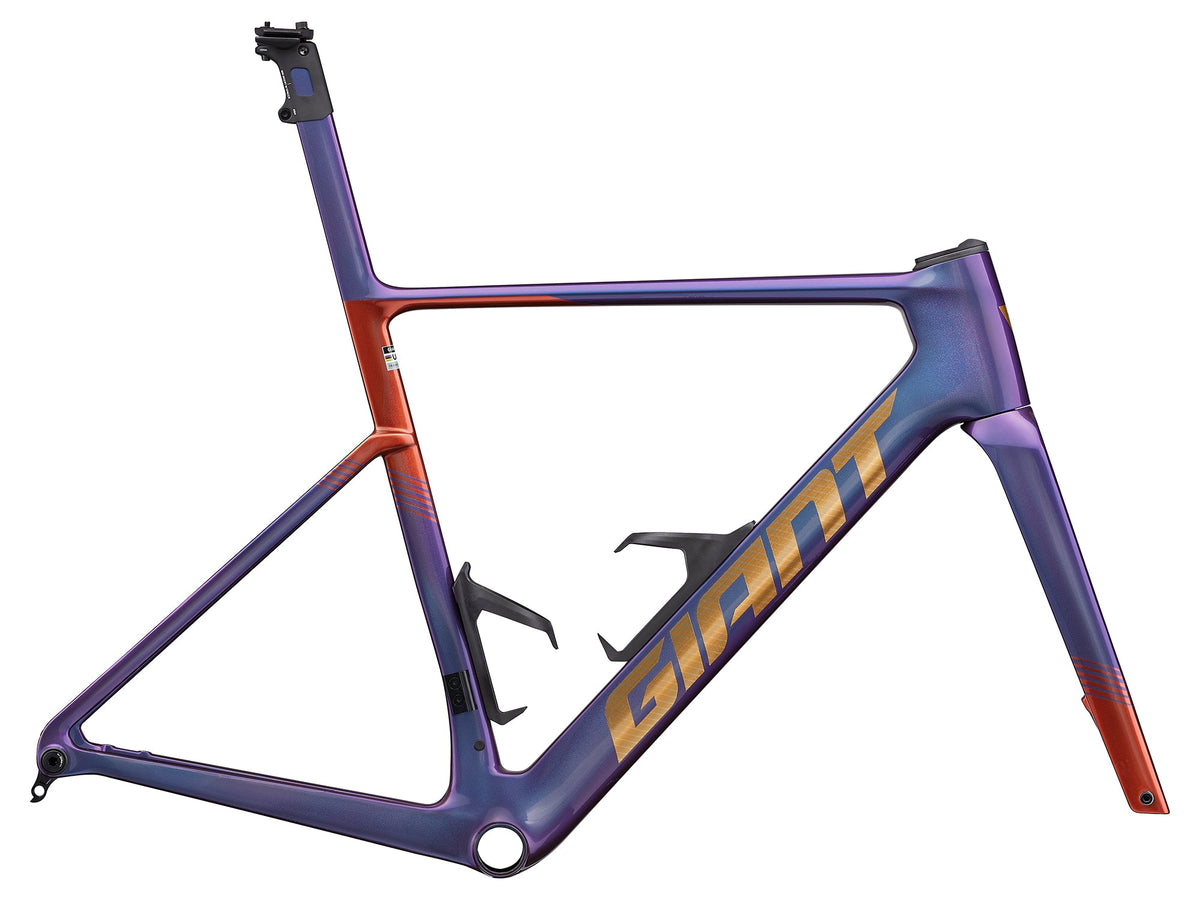

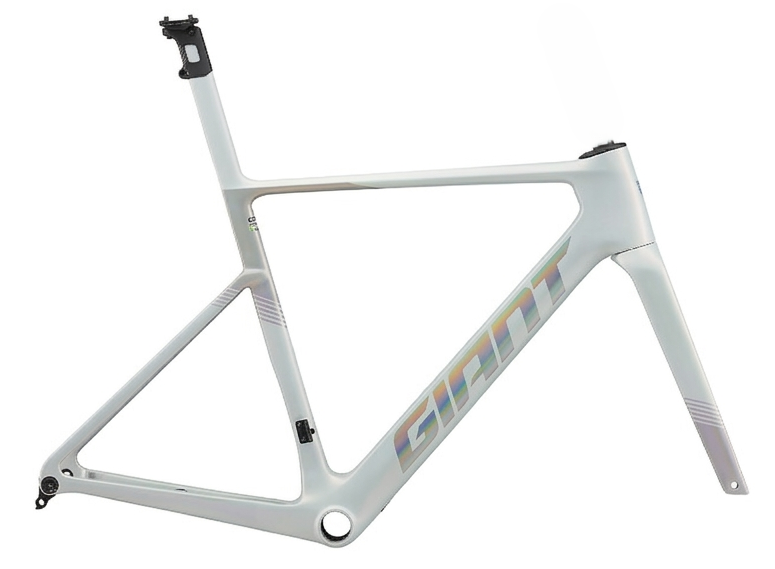

Giant 2027 Propel Advanced SL Frameset

Product Overview

From breakaways to the final sprint. The reengineered aero platform that maximises every watt.

The 2027 Propel Advanced SL is Giant's most advanced aerodynamic road frameset yet. Completely reengineered as a unified system, it delivers the perfect balance of top-end speed, instant acceleration, and sustained efficiency—whether you're attacking on a climb, driving a breakaway, or sprinting for the line.

Available as a frameset with fork, seatpost, and cockpit integration, the Propel Advanced SL sheds 355g from the previous generation while gaining 14.2% more torsional stiffness and 14.8% greater pedalling stiffness. The result is a frameset that feels instantaneous under power, yet remarkably smooth over long distances—the definition of a modern aero all-rounder.

---

Key Features

🏆 Advanced SL Composite – Ultralight, High-Stiffness Carbon

• Professional-grade raw carbon woven in Giant's own composite factory

• Continuous Fiber Technology adds strength while minimising weight

• One-Piece Mold construction: a single bladder (vs. three in the previous generation) creates a one-piece front triangle—reducing weight without compromising stiffness or aerodynamic shaping

• Frame weight: 800g (size M, unpainted)

📐 AeroSystem Shaping – Proven in the Wind Tunnel

• Truncated ellipse tubing more effectively reduces drag than traditional teardrop shapes

• Developed and validated through CFD modelling and wind-tunnel testing across a wide range of yaw angles

• Total system energy savings of 18.4 watts—accounting for linear aero drag, wheel rotating drag, and tire rolling resistance

⚡ Instant Speed – Explosive Acceleration

• 14.2% more torsional stiffness and 14.8% greater pedalling stiffness than the previous generation

• Every watt translates into immediate forward motion

• The frameset reacts instantly when you launch an attack or sprint for the line

💨 Sustained Speed – Smooth, Fatigue-Free Ride Quality

• Vector Integrated Seatpost delivers 25% greater compliance than the previous generation

• Fork and integrated cockpit absorb bumps and vibrations with 15% added compliance up front

• Tyre clearance up to 32mm—run high-volume tyres for further comfort and speed with less fatigue

🔧 Full Composite Fork – D-Shaped Steerer

• D-shaped steerer tube and fork legs constructed entirely from Advanced SL-grade composite

• Ultralight weight, precise handling, and improved aerodynamic performance

• Increased tyre clearance up to 32mm

🛠️ OverDrive Aero – Easy Service, Hidden Cables

• D-shaped fork steerer and corresponding spacers provide an extremely aerodynamic, easy-to-service system of internally routed brake and derailleur cables

🎯 Internal Cable Routing – Clean and Adjustable

• Ports and channels keep cables hidden from the wind while allowing for easy adjustability

🍶 Aero Bottle Cages – Integrated Drag Reduction

• Custom-engineered down tube and seat tube specific bottle cages help reduce overall aerodynamic drag

🔩 UDH Compatible – Future-Proof Drivetrain

• SRAM UDH (Universal Derailleur Hanger) compatible for SRAM Full-Mount derailleurs

---

Specifications

---

Geometry

Full geometry chart with stack, reach, head tube angle, and other measurements available on request.

---

Compatibility

✅ Groupset Compatibility:

• Shimano – Dura-Ace Di2 R9270, Ultegra Di2 R8170, 105 Di2 R7170

• SRAM – Red AXS, Force AXS

• Campagnolo – Super Record Wireless (select models)

✅ Wheel Compatibility:

• 700c disc brake wheels

• 12mm thru-axle front and rear

✅ Tyre Compatibility:

• Up to 32mm tyre width

---

What Riders Are Saying

"The new Giant Propel Advanced SL hits the nail on the head for the aero all-rounder. But it adds something that aero all-rounders don't necessarily shine at: plenty of comfort." — Rennrad-News (120km test ride)

"The balance between lightweight, aerodynamics and handling is very hard to fault. The finishing of the bike is exceptional and the equipment levels are spot on." — 99 Spokes

"The latest generation of the Propel gets nearly everything right... Dipping below 6.8 kg and with a claimed 18-watt savings, the latest Propel edges into all-rounder territory." — 99 Spokes

"At 6.44 kg in the top version, it poses major competition to the TCR." — Mount7

"Overall movement is very smooth, with no strain. During cruising, the airflow feels stable—a frame that's easy to ride without disrupting your pedalling rhythm." — Y's Road Fukuoka

---

What's in the Box

• Giant Propel Advanced SL Frame × 1

• Advanced SL-grade Composite Fork × 1 (360g)

• Vector Integrated Seatpost × 1

• Headset bearings and spacers

• Thru-axles (front and rear)

• Frameset only – complete bike components not included

---

Why Choose the 2027 Propel Advanced SL Frameset?

---

Technical Notes

⚠️ Frameset Only: This listing is for the frameset, fork, and seatpost only—complete bike components (groupset, wheels, cockpit, etc.) are not included unless specified by the retailer

⚠️ Integrated Seatpost: The Vector seatpost is included and integrated into the frame design—cannot be substituted with a standard round post

⚠️ Cockpit Compatibility: The frameset is designed for Giant's OverDrive Aero system—use compatible D-shaped steerer cockpits or adapters

⚠️ Bottom Bracket: Not included—purchase separately according to your groupset's crank standard

⚠️ UDH: Compatible with SRAM Universal Derailleur Hanger for SRAM Full-Mount derailleurs

⚠️ Warranty: Giant's lifetime frame warranty applies to the original purchaser

---

About Giant

Giant is the world's largest bicycle manufacturer, founded in 1972 in Taiwan. With over 50 years of engineering heritage, Giant designs and builds bicycles for every discipline—from WorldTour racing to everyday commuting. The Propel Advanced SL represents the pinnacle of Giant's aerodynamic road engineering, developed in partnership with Jayco Alula (formerly Team BikeExchange-Jayco) and proven at the highest levels of professional racing. Every Propel Advanced SL frameset is manufactured in Giant's own composite factory, ensuring complete control over quality, precision, and performance.
