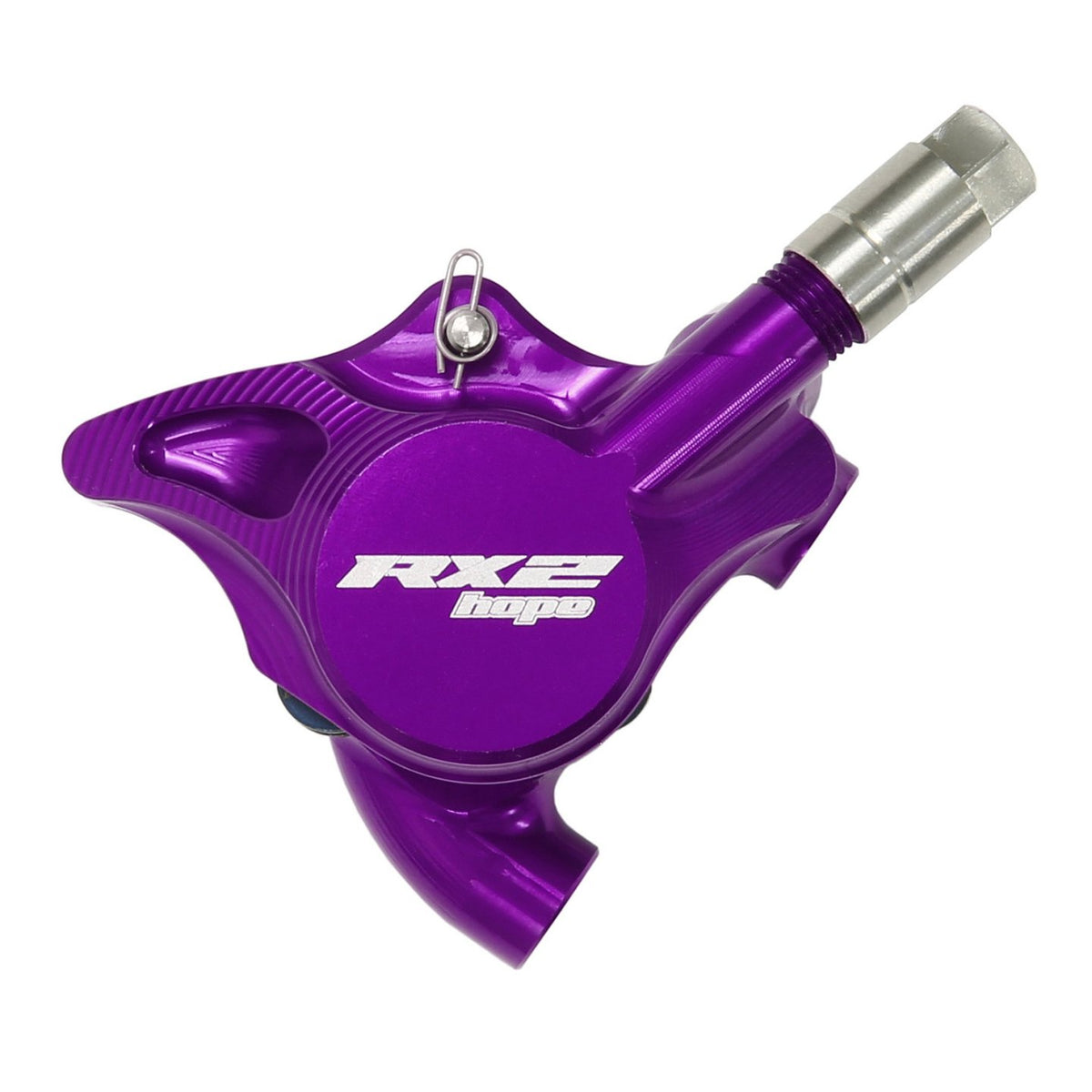

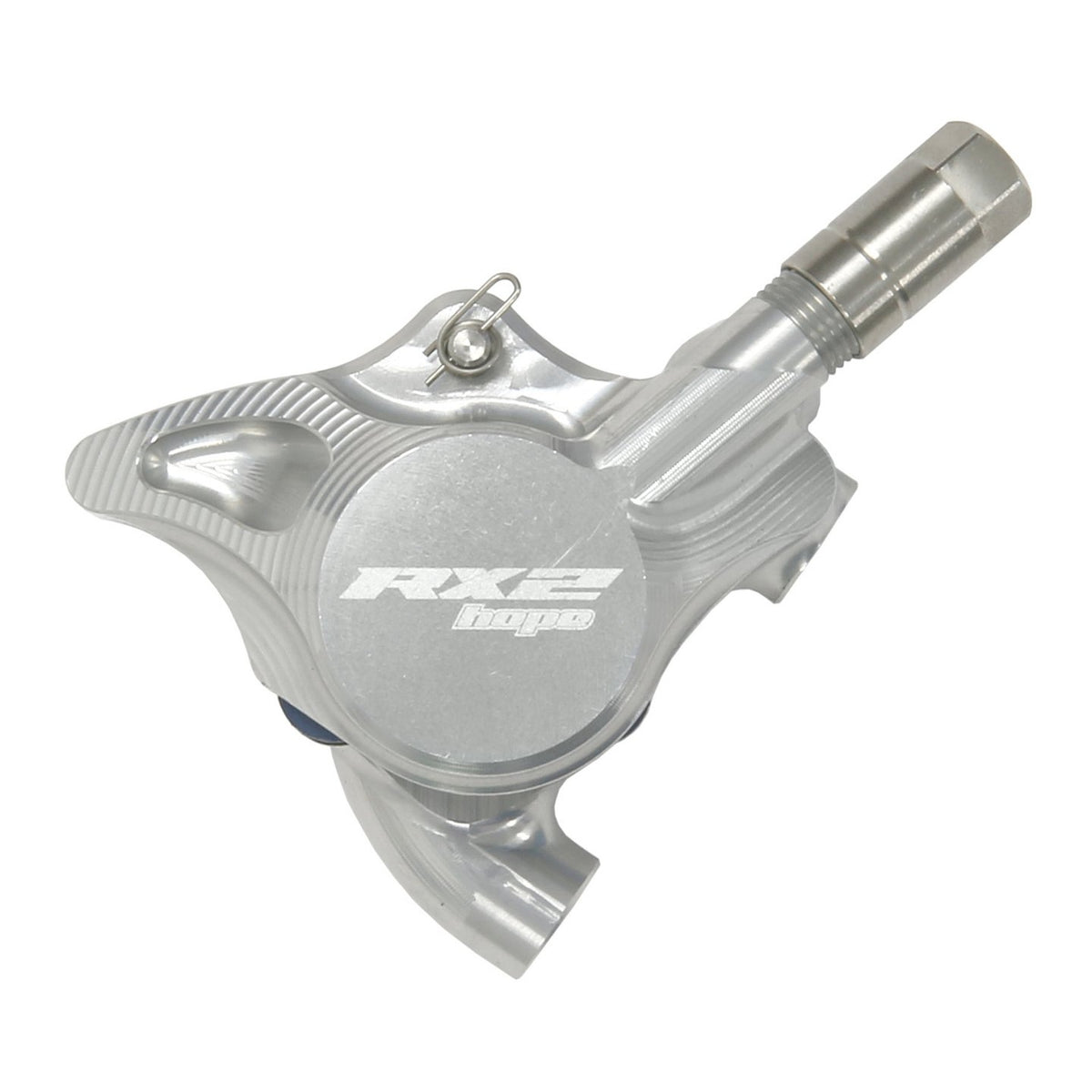

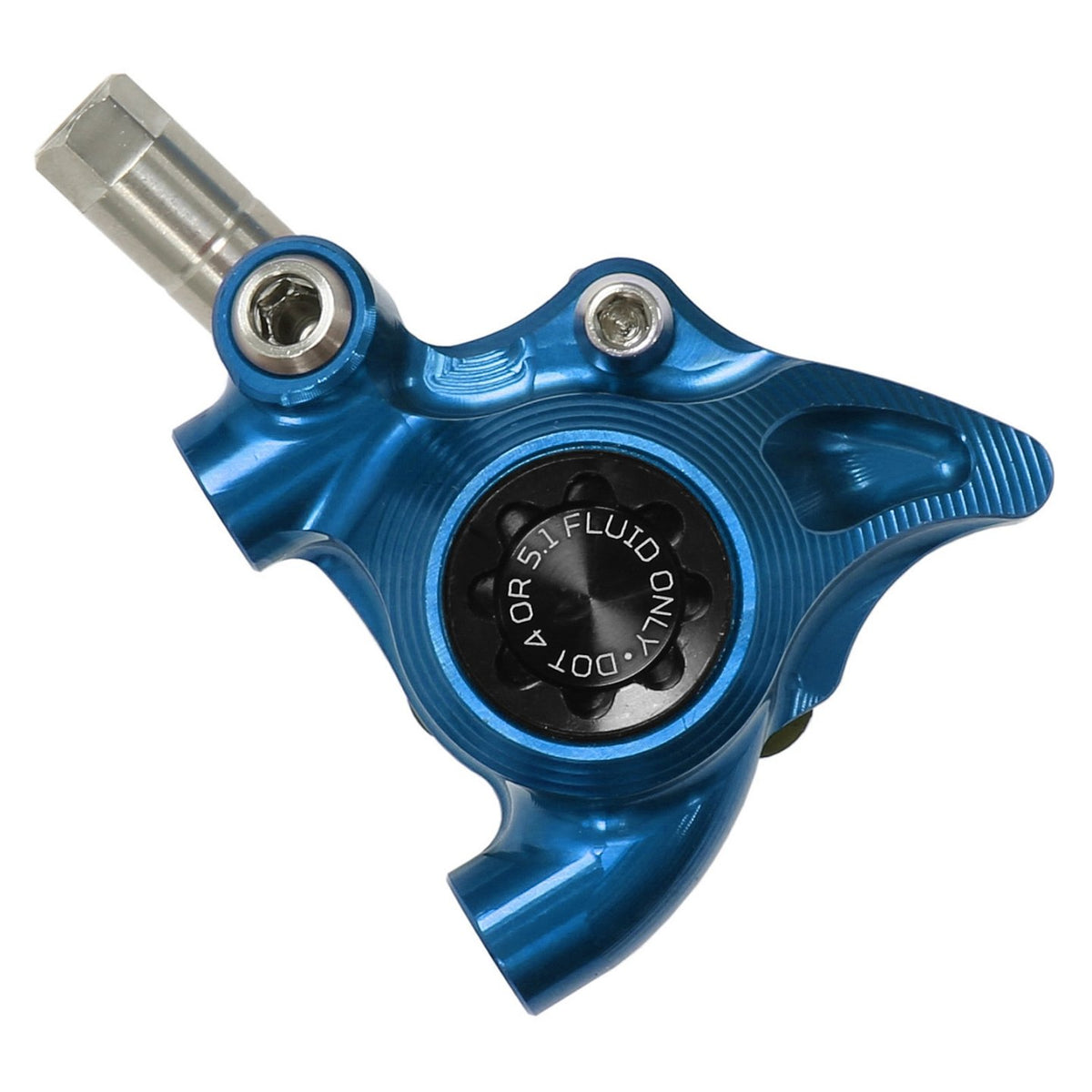

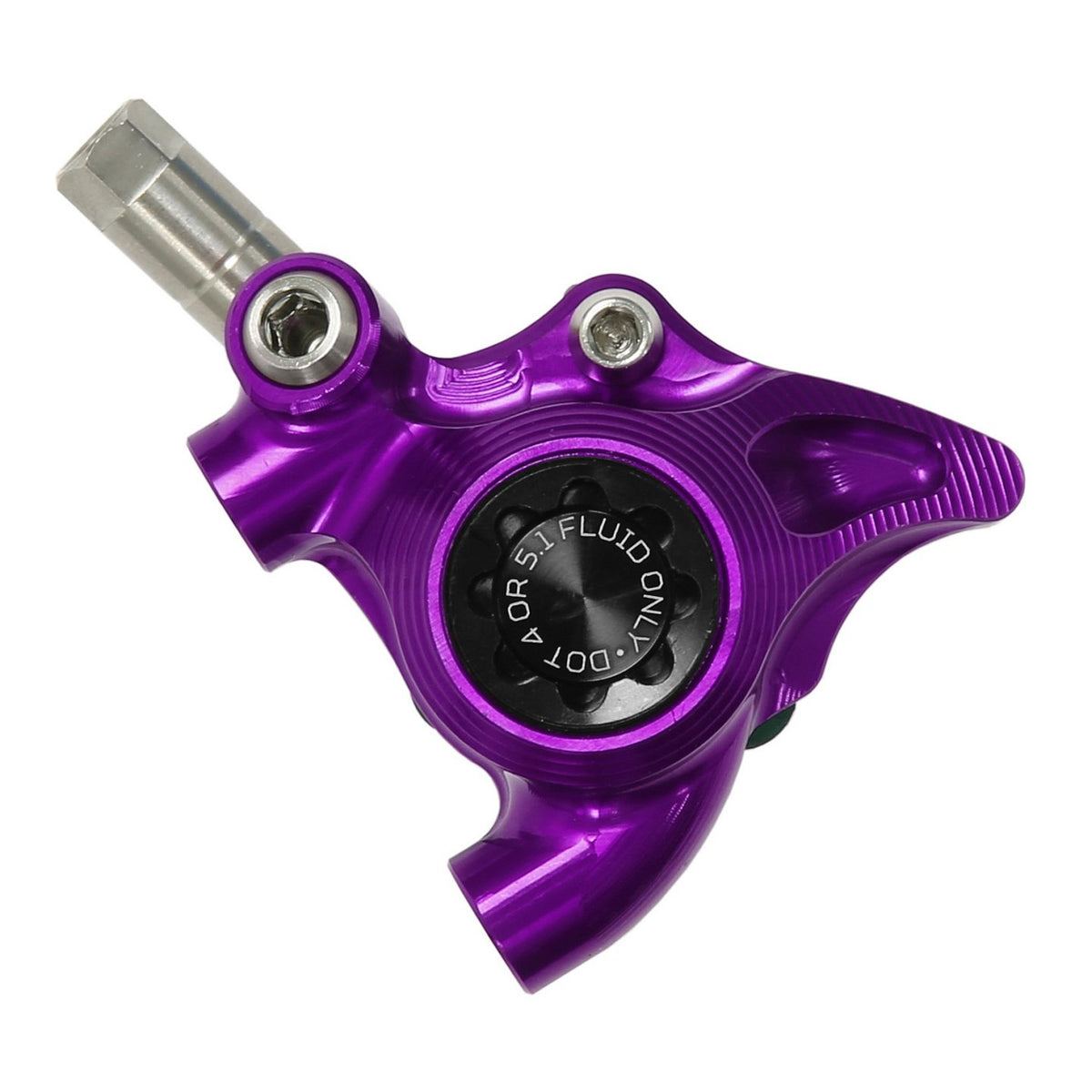

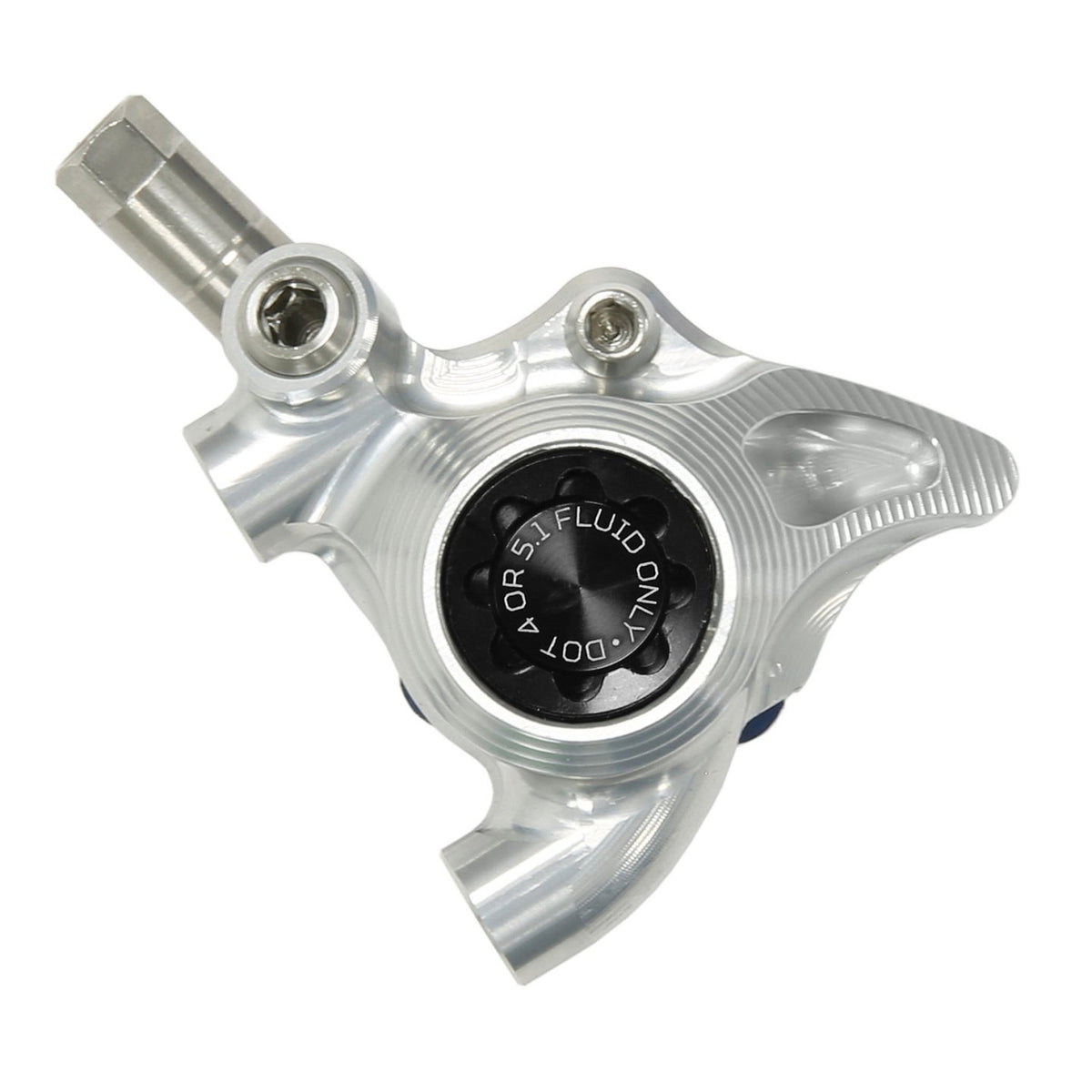

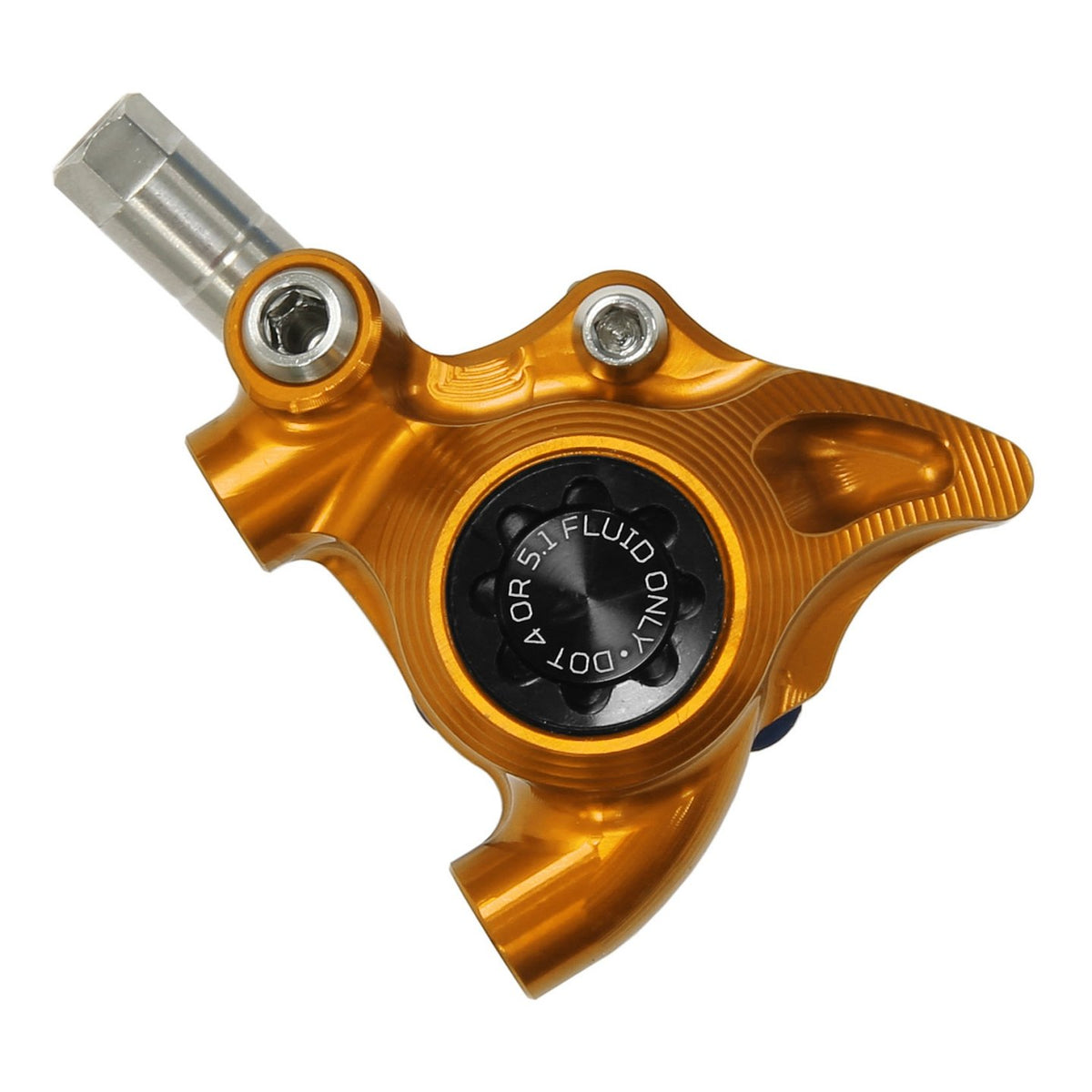

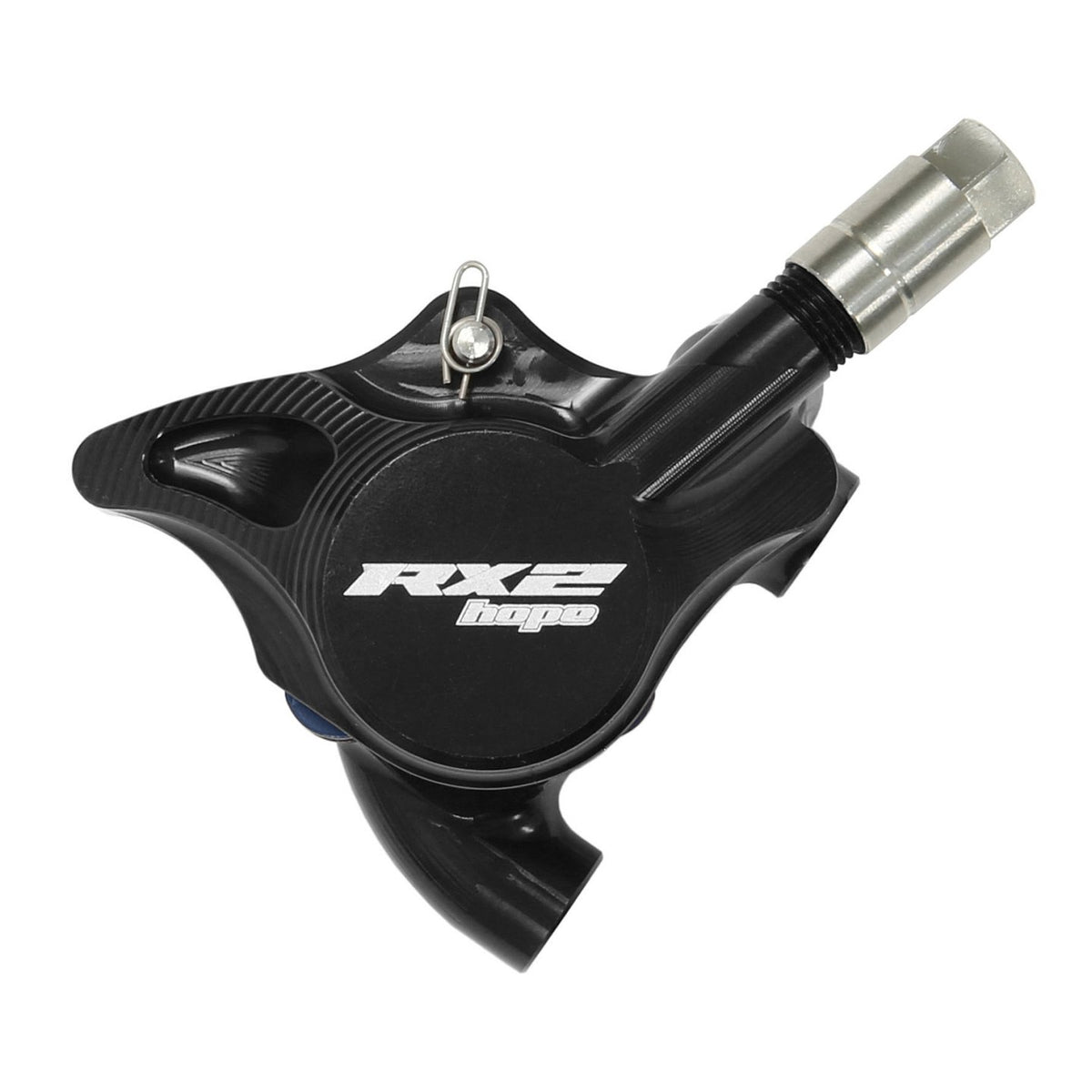

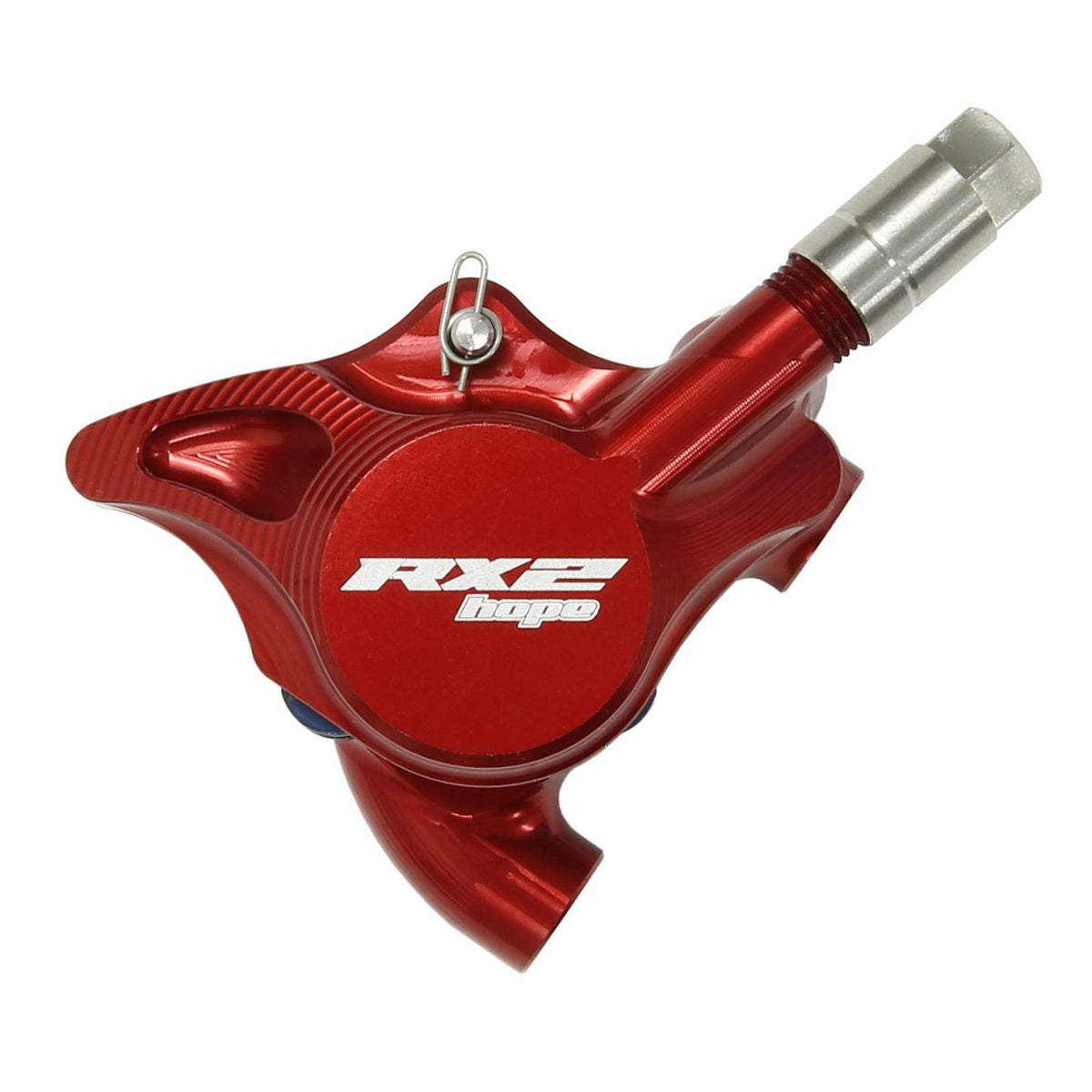

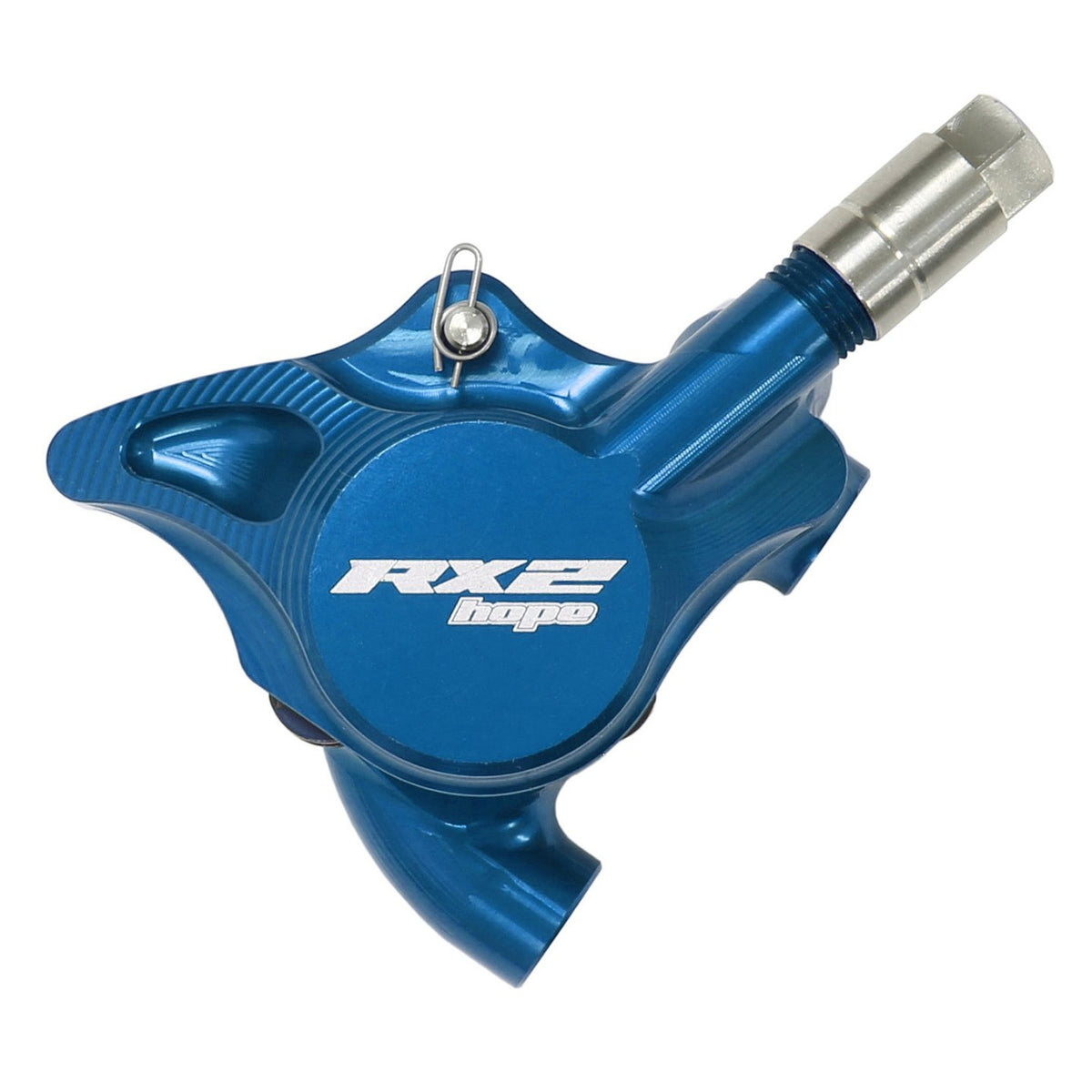

Hope RX2 Brake Caliper

Hope RX2 Brake Caliper

HK$1,130.00 HKD
HK$1,130.00 HKD
Sale Sold out

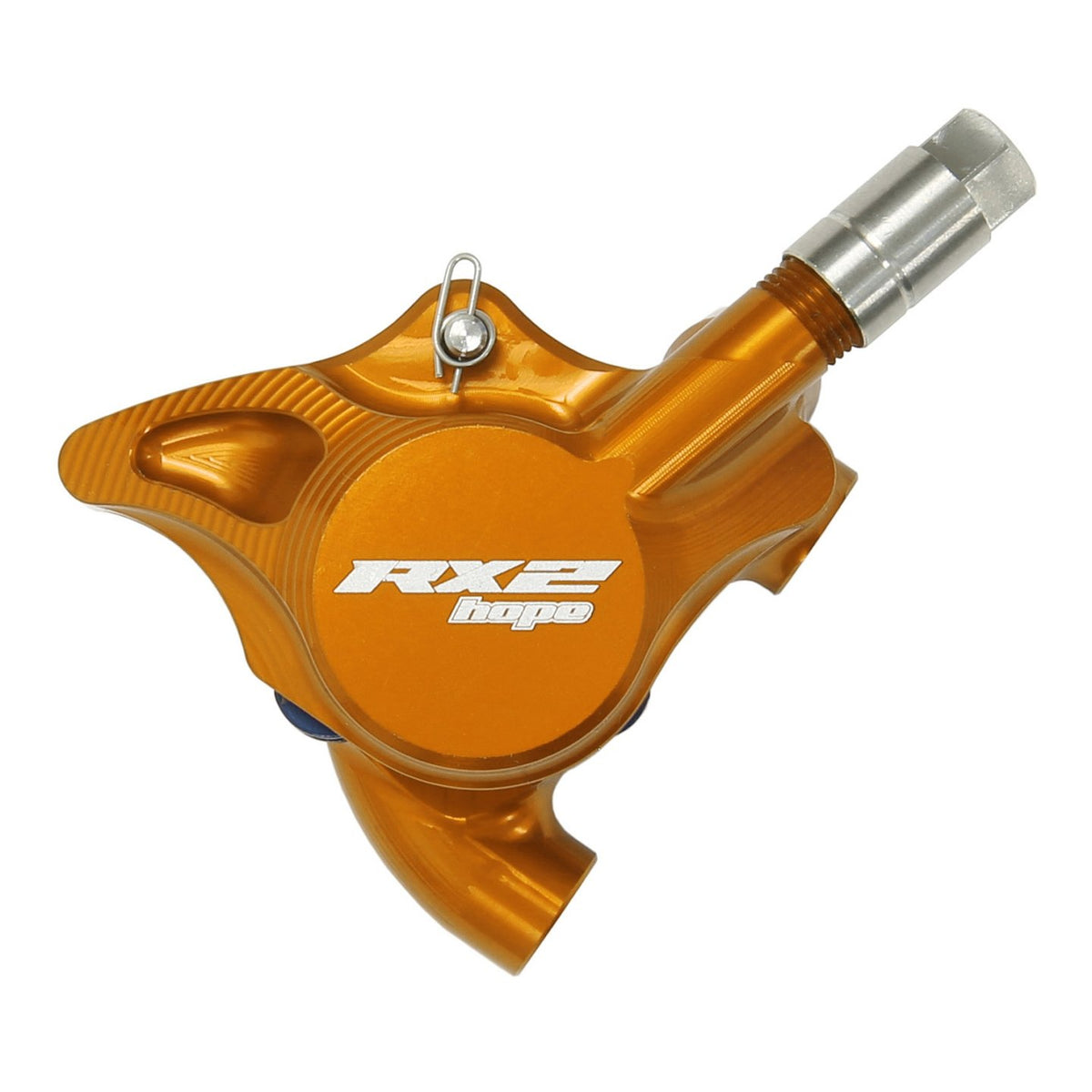

Color: Orange
Brake System

Product Overview

British precision. Compact power. Versatile compatibility.

The Hope RX2 is a two‑piston flat‑mount brake caliper engineered specifically for road and gravel bikes. Designed as the compact sibling to Hope's renowned four‑piston RX4, the RX2 delivers exceptional braking performance in a slimmer package—ideal for frames with limited rear triangle clearance and riders who prefer a lighter, more nuanced feel.

CNC‑machined from a single block of 2014 T6 aluminium in Hope's UK factory, every RX2 caliper embodies the brand's obsession with precision engineering and unmistakable style. Available in two distinct versions to suit your drivetrain, the RX2 brings World‑class stopping power to any build.

Two Versions – One Caliper



Version Fluid Compatibility
DOT (DOT) DOT 4 / DOT 5.1 SRAM road hydraulic systems
Mineral Oil (MIN) Mineral Oil Shimano & Campagnolo road hydraulic systems

⚠️ Choose the correct version for your groupset—DOT fluid and mineral oil are not interchangeable.

Key Features

🏆 Compact Two‑Piston Design

  • Developed specifically for road bike handlebars

  • Slim profile fits tight rear triangles—particularly suitable for smaller frame sizes

  • Lightweight two‑piston design reduces unsprung mass

⚡ Power & Feel

  • Power output is comparable to the four‑piston RX4+

  • Stiffer monoblock construction delivers excellent modulation and precise brake feel

  • Phenolic plastic pistons for consistent performance and heat insulation

🔧 Premium Monoblock Construction

  • CNC‑machined from a single piece of 2014 T6 aluminium

  • Maximum rigidity with minimal weight

  • No seals between caliper halves—eliminates a common leak point

  • Consistent, fade‑free braking performance

🛠️ Easy Maintenance

  • Completely redesigned bleed screw for faster, cleaner maintenance

  • Top‑entry pads—swap pads without removing the caliper from the frame

  • Available in Hope's signature anodised colours

📦 Complete Pad Kit

  • Includes both sintered metal and organic (resin) brake pads

  • Choose the compound that suits your riding conditions

Specifications



Specification Detail
Type 2‑piston (2 × 22mm)
Material 2014 T6 aluminium
Construction CNC‑machined monoblock
Mount Flat Mount (FM Std)
Caliper Weight 94g (with hardware)
Caliper Weight 67g (without pads)
Rotor Compatibility Front: 160 / 180mm • Rear: 140 / 160mm
Pad Type Top‑entry, sintered + organic included
Finish Anodised aluminium
Origin Made in Barnoldswick, UK

Compatibility

✅ Shimano – Mineral Oil Version

  • Dura‑Ace: R9270 / R9200 / R9170 / R9120

  • Ultegra: R8170 / R8100 / R8070 / R8020

  • 105: R7170 / R7020

  • GRX: RX820 / RX810 / RX600 / RX400 / RX815 Di2 / RX817 Di2

  • Others: Di2 R785 / RS685

✅ SRAM – DOT Version

  • Red eTap AXS / Red

  • Force eTap AXS / Force

  • Rival eTap AXS / Rival

  • Apex / S900

⚠️ NOT Compatible With:

  • Mixing fluid types (DOT vs Mineral Oil)

  • Shimano levers with DOT version / SRAM levers with Mineral Oil version

What Riders Are Saying

"The RX2 has the same characteristics (precise response and high modulation) as its big brother." — r2‑bike.com

"Hope claims that the power is still similar to the RX4+, thanks to a one‑piece machined construction with better brake feel and increased power." — Bikerumor

"The caliper's shape has been optimized for tight spaces in the rear triangle and is particularly suitable for smaller frame sizes." — BIKE24

What's in the Box

  • Hope RX2 Brake Caliper × 1 (Flat Mount)

  • Hope sintered metal brake pads × 1 set

  • Hope organic (resin) brake pads × 1 set

  • Spring + pad retaining screw

Brake levers, hoses, rotors, and adapters sold separately.

Why Choose Hope RX2?



Hope RX2 Shimano Dura‑Ace SRAM Red
Material ⭐⭐⭐⭐⭐ 2014 T6 Alu ⭐⭐⭐⭐ ⭐⭐⭐⭐
Construction ⭐⭐⭐⭐⭐ Monoblock CNC ⭐⭐⭐ Two‑piece ⭐⭐⭐ Two‑piece
Weight ⭐⭐⭐⭐⭐ 94g ⭐⭐⭐⭐ 97g ⭐⭐⭐⭐ ~95g
Pad Swap ⭐⭐⭐⭐⭐ Top‑entry ⭐⭐⭐ Bolt‑in ⭐⭐⭐ Bolt‑in
Custom Colours ⭐⭐⭐⭐⭐ Anodised ⭐⭐ Limited ⭐⭐ Limited
Maintenance ⭐⭐⭐⭐⭐ Easy bleed ⭐⭐⭐⭐ ⭐⭐⭐⭐
Origin ⭐⭐⭐⭐⭐ Made in UK ⭐⭐⭐⭐ Japan ⭐⭐⭐⭐⭐ USA/TW

Technical Notes

⚠️ Fluid: DOT version uses DOT 4 / DOT 5.1 only • Mineral Oil version uses Shimano Mineral Oil only

⚠️ Compatibility: Choose the correct version for your groupset—not interchangeable

⚠️ Bleed Kit: Use Hope's dedicated bleed kit for RX2/RX4+ SL (HTTBLRXDOT or HTTBLRXMIN)

⚠️ Mount: Flat Mount standard—check your frame's mount type before purchasing

⚠️ Rotor Size: Verify your frame and fork support the chosen rotor size (140/160mm rear, 160/180mm front)

About Hope Technology

Hope Technology is a British manufacturer based in Barnoldswick, Lancashire, producing premium bicycle components since 1989. Every Hope product is designed, engineered, and machined in‑house at their UK facility. Renowned for their distinctive anodised finishes and precision CNC machining, Hope components are trusted by riders worldwide for their performance, durability, and unmistakable style.
