Sixweel Titanium Caliper Adapter

Sixweel Titanium Caliper Adapter

HK$1,080.00 HKD
HK$1,080.00 HKD
Sale Sold out
Model

Product Overview

Precision engineering. Unmatched stability. Half the weight.

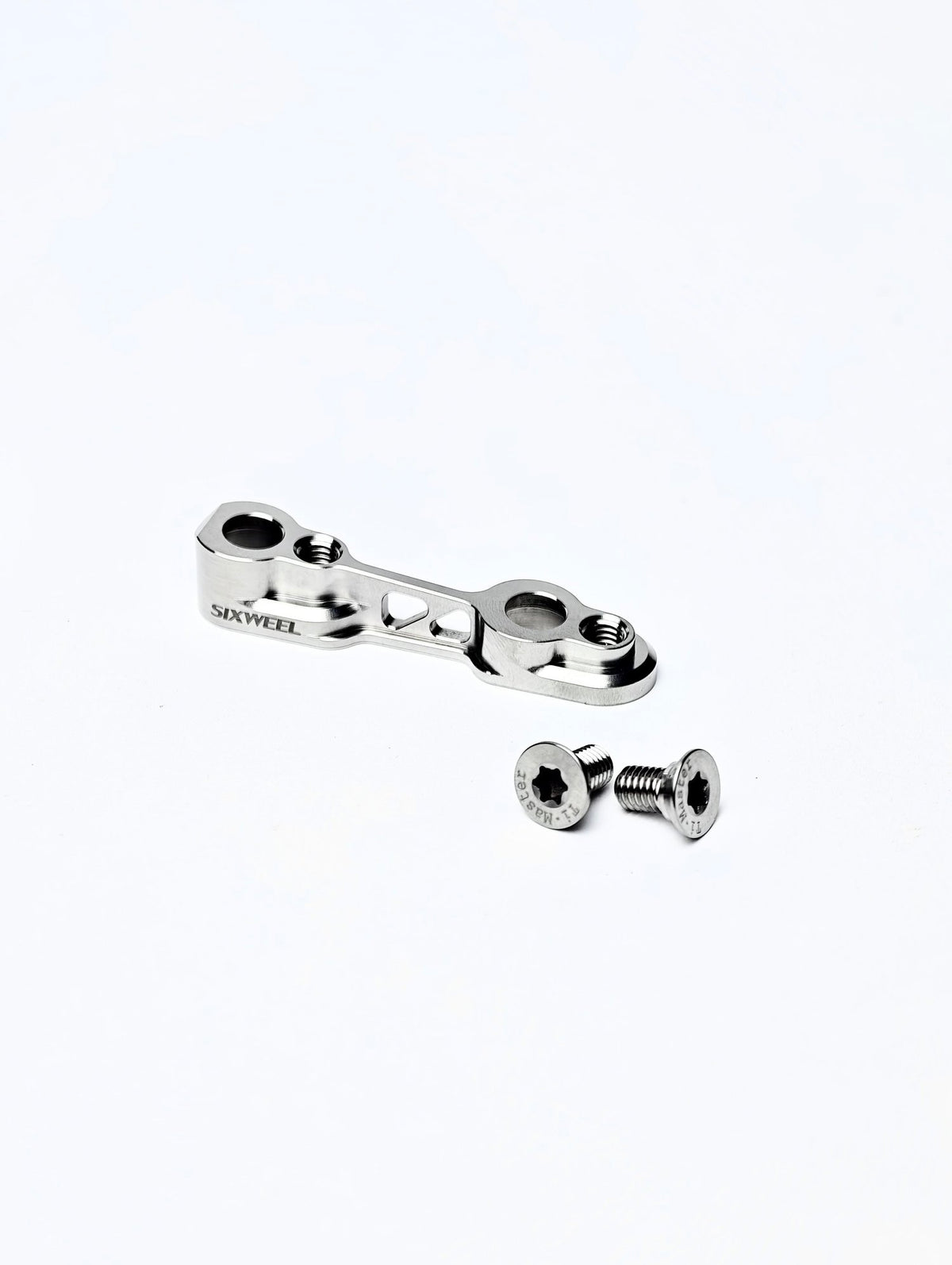

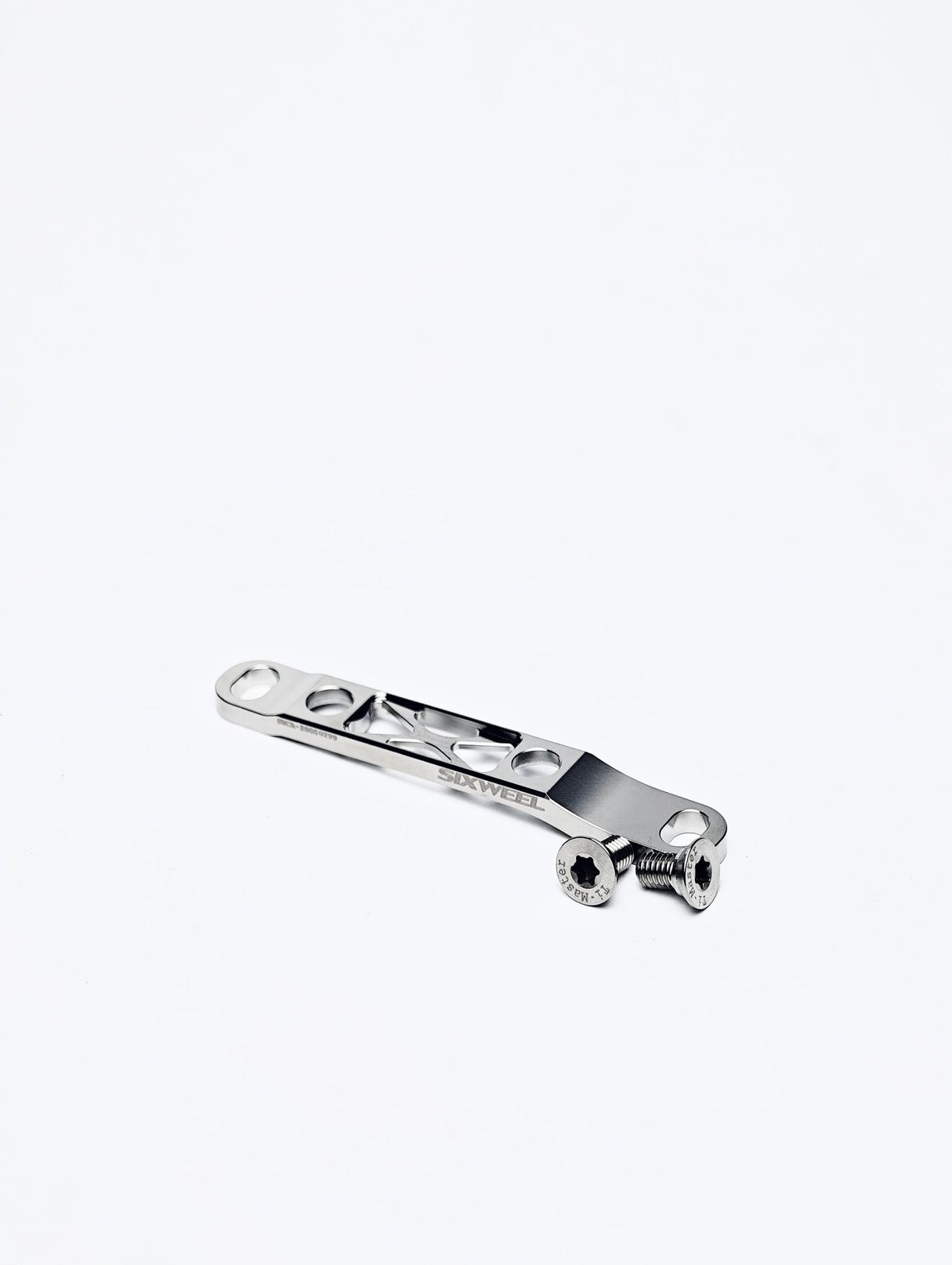

The Sixweel Titanium Caliper Adapter is a precision CNC‑machined component crafted from aerospace‑grade Grade 5 titanium (Ti‑6Al‑4V). Designed for disc brake road bikes, it delivers exceptional braking stability, significant weight savings, and durability that outperforms both stock aluminium adapters and 3D‑printed alternatives.

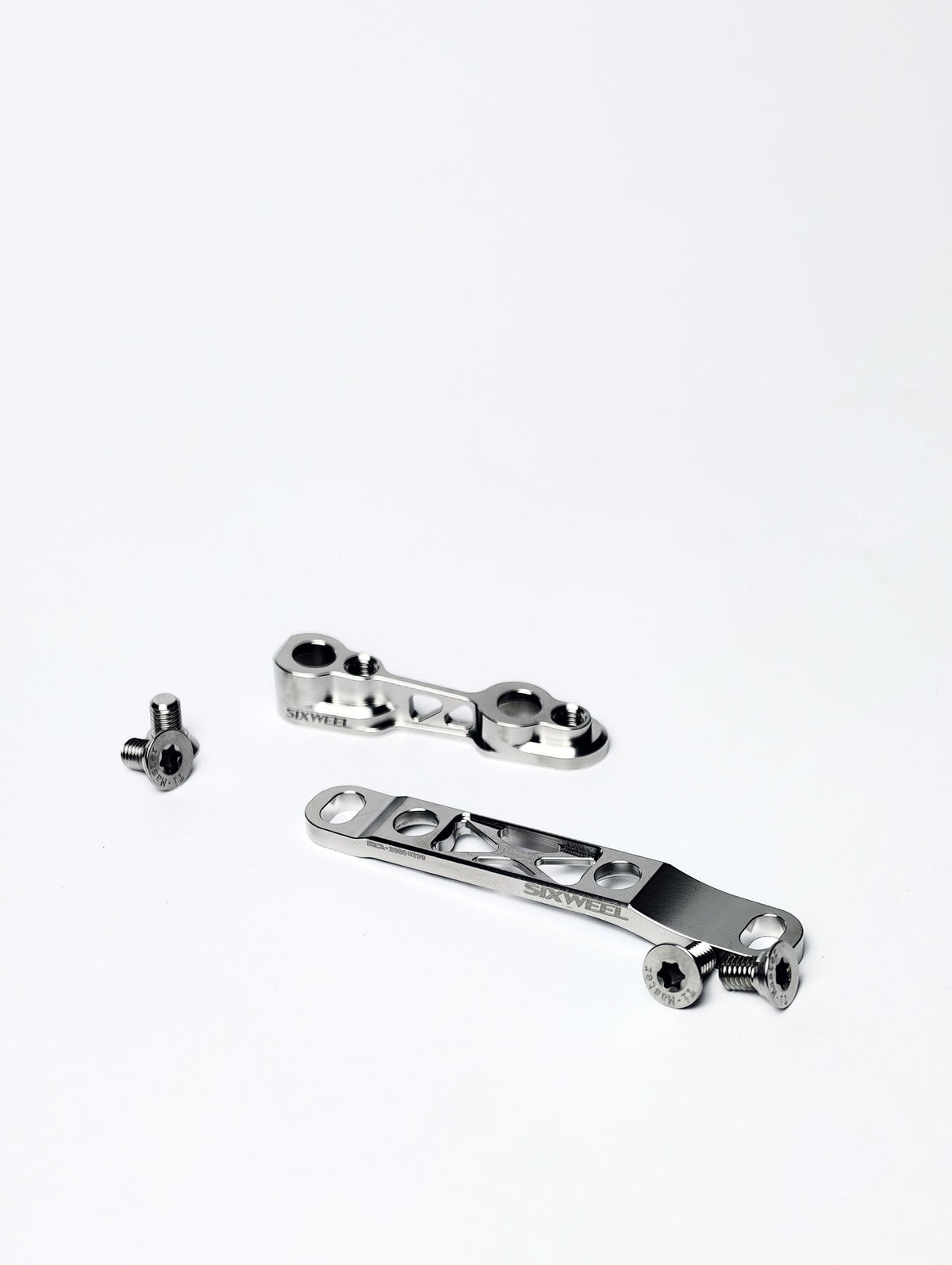

Available in front (70mm flat‑mount) and rear (160mm) configurations, this adapter is the ultimate upgrade for riders who demand every component to be as light, strong, and precise as the rest of their build.

Key Features

🏆 Dramatic Weight Savings

  • Front adapter: just 8.25g — nearly half the weight of a standard aluminium adapter (14.48g)

  • Saves over 6 grams on the front fork without compromising strength or safety

  • Rear adapter similarly lightened for balanced weight reduction

🔩 Aerospace‑Grade Titanium (Grade 5 / TC4)

  • Constructed from Ti‑6Al‑4V — the same material used in aerospace and medical implants

  • 1000+ MPa tensile strength — stronger than most steel alloys

  • 36 HRC surface hardness for exceptional wear and scratch resistance

  • Unmatched strength‑to‑weight ratio

⚙️ Precision CNC Machining

  • 4‑axis CNC‑machined from solid titanium billet — not cast, not 3D‑printed

  • Superior material density and homogeneous structure

  • Tight tolerances eliminate play and ensure perfect alignment

  • Carefully reserved contact surfaces for screws, frame, and brake calipers

🛡️ Engineered for Stability

  • Provides longitudinal and torsional support during braking

  • Prevents damage to screws, frame, or mounting points under high‑intensity loads

  • Reinforced contact zones in key stress areas

  • Retains additional material in critical zones — drawing from the proven Ti‑Master brake base design

🔧 Complete Titanium Hardware

  • Includes custom high‑strength titanium mounting screws for complete weight optimisation

  • Eliminates mixed‑metal corrosion concerns

🛡️ Crash Replacement Support

  • Original purchasers may receive a special discount on replacement parts in case of crash or accidental damage

Specifications



Item Detail
Material Grade 5 Titanium (Ti‑6Al‑4V / TC4)
Tensile Strength 1000+ MPa
Surface Hardness 36 HRC
Manufacturing 4‑axis CNC machining from solid titanium billet
Heat Treatment Specialised thermal processing for maximum strength
Front Adapter Weight 8.25g (without titanium screws)
Front Mount Standard Flat‑Mount, 70mm hole‑to‑hole distance
Rear Adapter Flat‑Mount for 160mm rotor
Included Hardware 2× titanium mounting screws

Compatibility

✅ Compatible With:

  • Most modern road bikes with Flat‑Mount disc brake standard

  • 70mm hole‑to‑hole distance front flat‑mount forks

  • 160mm rear rotor flat‑mount frames

⚠️ Always verify your frame's hole‑to‑hole distance before purchasing. If you are unsure, please contact us with your bike model and year.

What's in the Box

  • Sixweel Titanium Caliper Adapter × 1 (Front or Rear, as selected)

  • High‑strength Titanium Mounting Screws × 2

  • Installation instructions

What Riders Are Saying

"I have a few items like the front caliper mount and rear derailleur hanger. They are all jewellery...and very nicely done." — WeightWeenies Forum

"Weighs only 8.25g — almost half the weight of a standard aluminium adapter (14.48g), saving over 6 grams on the front fork without compromising strength or safety." — bike-rs.pl

Why Choose Sixweel?



Sixweel Titanium OEM Aluminium 3D‑Printed Ti Mixed‑Metal
Weight ⭐⭐⭐⭐⭐ 8.25g ⭐⭐⭐ 14.48g ⭐⭐⭐⭐ Light ⭐⭐⭐ Variable
Strength ⭐⭐⭐⭐⭐ 1000+ MPa ⭐⭐⭐ Moderate ⭐⭐⭐⭐ Good ⭐⭐⭐ Variable
Precision ⭐⭐⭐⭐⭐ CNC solid billet ⭐⭐⭐⭐ Cast/machined ⭐⭐⭐ Variable ⭐⭐⭐ Moderate
Material Density ⭐⭐⭐⭐⭐ Homogeneous ⭐⭐⭐⭐ Good ⭐⭐ Porous ⭐⭐⭐ Variable
Hardware ⭐⭐⭐⭐⭐ Ti screws included ⭐⭐ Steel screws ⭐⭐⭐ Variable ⭐⭐ Steel screws
Corrosion Resistance ⭐⭐⭐⭐⭐ Excellent ⭐⭐⭐ Moderate ⭐⭐⭐⭐⭐ Excellent ⭐⭐ Mixed‑metal risk

Technical Notes

⚠️ Fitment Verification: This adapter is designed for 70mm hole‑to‑hole flat‑mount forks. Specialized SL8/Aethos (60mm) and BMC (65mm) are not compatible.

⚠️ Installation: Always use a torque wrench and follow your brake manufacturer's recommended torque specifications for caliper mounting.

⚠️ Thread Care: Titanium screws should be installed with a suitable anti‑seize compound to prevent galling.

⚠️ Front vs Rear: Ensure you select the correct adapter for your application — front (70mm flat‑mount) or rear (160mm).

About Sixweel

Sixweel was founded in 2021 with a singular focus: traditional road components that push the boundaries of weight, precision, and durability. In 2024, Sixweel was acquired by TiMaster, gaining access to advanced high‑hardness, high‑strength material processing capabilities. Today, Sixweel continues to innovate, balancing efficiency, durability, stability, and weight in every component design. From the workshop to the WorldTour, Sixweel products are built to perform — and to accompany you to the podium.
